JTunedMotorsports · 08-22-2009, 02:04 AM

Hello all

We are tearing this car apart for a full re-build and hope to have it done by end of winter time

First we are stipping the car, caging and bracing it..
Then glass goes back in and it gets painted and the kit put on.

The set up we are going to run goes as follows

Sr20det 2.2 bottom end
Sr20 VVL fwd head built
custom intake mani with Q45
top mount t3 manifold
Mid mount intercooler
tial bov
tial wastegate
1000cc injectors
top feed rail
fuel system
Z32 trans and twin disk clutch
oil and ps coolers
custom crash bar
cooling system
oil catch can with custom -an lines from valve cover
haltech or aem ems.

Suspension is finished

Full SPL arms
Modded front control arms and knuckles
Tein S14 inner tie rods with spacer
SPL outer tierod ends
ES bushings eveywhere
ES rack bushings
Nismo front brace
Kazama tension rods
Solid Alum subframe bushings
Tanabe rear sway bar
Z32 brakes
ABS booster
17/16 bmc
AP brake lines
K-Sport e-brake with custom install kit
Ichiba 5 lug hubs
Enkei rp1-silver
front 17x9 22
rear 18.9.5 18
Ichiba front and rear wheel spacers
Tanable 7 coilovers
8 Point custom rollcage

The rest we will update on

Pics of strip down and part out of old parts

Paint and cage prep.

Im using the head form this VVL and putting it on my sr20 block

these 2 pics are a mock up of the vvl head on sr block..I will be building both and putting a z32 trans on it..

update: painted interior and engine bay

Teku18 · 08-22-2009, 08:22 AM

sweet!! looking good guys. Ill deff keep an eye on this.

AnthonyJDM · 08-22-2009, 06:14 PM

what kind of front spindles are they?

DN_Sileighty · 08-24-2009, 12:28 AM

they look like MA-motorsports

95st-celica · 08-24-2009, 12:38 AM

wow...this is gonna be a sweet ride when its done. good luck with everything...i'll be keepin an eye on this thread

SR_vlurs · 08-24-2009, 12:42 AM

car looks nice man ill keep checking back on this thread

TurboTagTeam · 08-24-2009, 01:26 AM

I thought I told you to dump that poopy car.

I'll only build a jungle gym inside a FD.

the mike · 08-25-2009, 03:08 PM

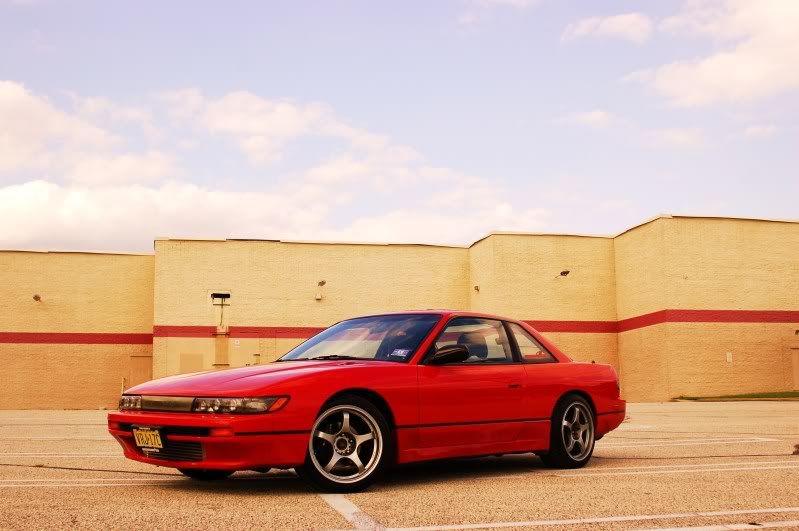

Man, I love those wheels on that car. Now I know what mine would look like.

JTunedMotorsports · 08-25-2009, 05:08 PM

thanks..which ones...weapons or rpf's....rear is 18x9.5 15 and from is 17x9 22

the mike · 08-25-2009, 08:35 PM

The ENKEI's. I do heart them.

Put them on this:

JTunedMotorsports · 08-25-2009, 09:19 PM

yes i got the last U.S stock of the rear size in the rpf-1s and waited months for them..but the fronts are always in stock...most ppl run the 17x9's all around

JTunedMotorsports · 08-27-2009, 11:51 PM

pics at the top..VVL motor is in

JTunedMotorsports · 12-04-2009, 11:25 AM

update...paint,prep and cage being done now.

JTunedMotorsports · 02-23-2010, 07:01 PM

suspension and bodykit update..Top ^

turbo88crx · 02-23-2010, 07:13 PM

Dam jim lookin sweet!! def cant wait to see more!! keep the updates comin

JST2KWIK · 02-23-2010, 08:52 PM

good work! I'll be checking back

JTunedMotorsports · 02-23-2010, 11:34 PM

yea..I will keep updating..waiting for the kit and fenders..been back ordered for months....finishing the cage now and picking the paint out now too.

JST2KWIK · 02-23-2010, 11:58 PM

Quote:

Originally Posted by JTunedMotorsports

yea..I will keep updating..waiting for the kit and fenders..been back ordered for months....finishing the cage now and picking the paint out now too.

Version select is back ordered? hm seems wierd with how the economy is now... I just picked up my origin kit today and man is it a good feeling to see **** starting to come together

JTunedMotorsports · 02-24-2010, 08:13 AM

Quote:

Originally Posted by JST2KWIK

Version select is back ordered? hm seems wierd with how the economy is now... I just picked up my origin kit today and man is it a good feeling to see **** starting to come together

Well they pushed back the VS containera few weeks bc they just got an Origin one bc they had no space..but the kit i wanted they dont carry alot and same with the hood..but i got the hood now..I also have the Origin 50 mm rear fenders and 20mm fronts..they are always in stock..All out of stock been back ordered since june the last time they brought in the container..4 of my customers are wating for their kits too..Should be end of march..Messed up my schedule up but i can still paint the inside of the car, work on fuel and engine system..Suspension is done atleast.

civictype_r · 02-24-2010, 10:12 AM

Anymore pics? It's looking real good!
