Piston Carnage - TriStateTuners.com :: Home of Tristate Auto Enthusiast

howielong · 12-06-2008, 11:58 PM

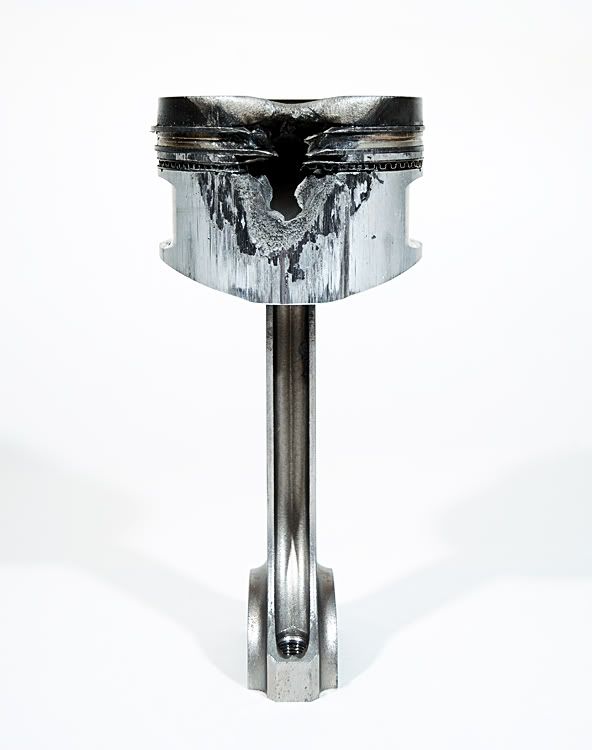

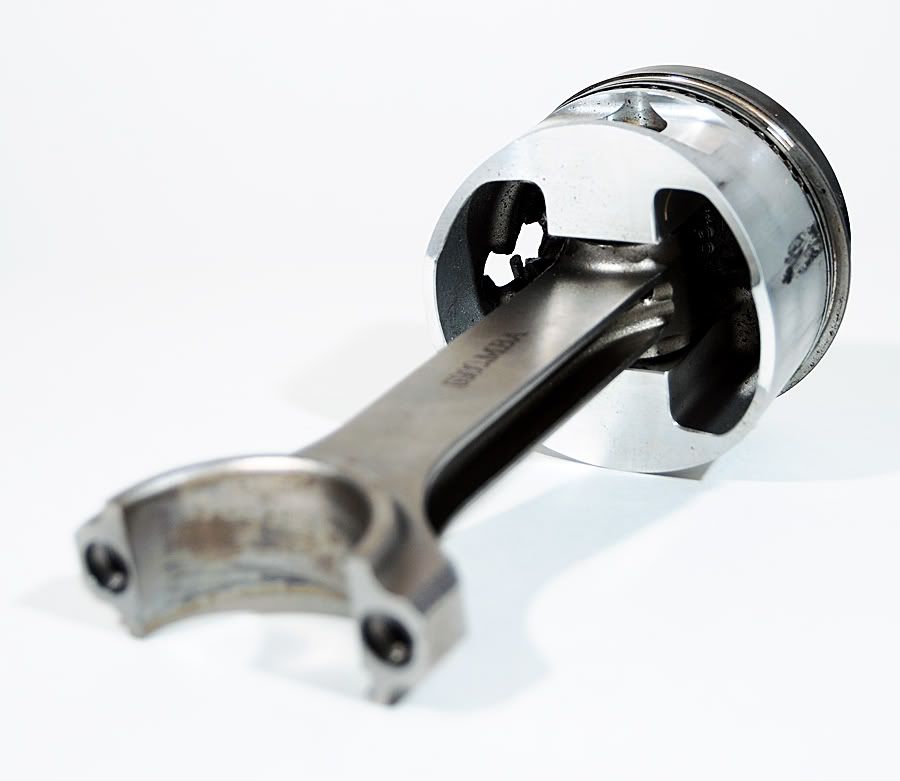

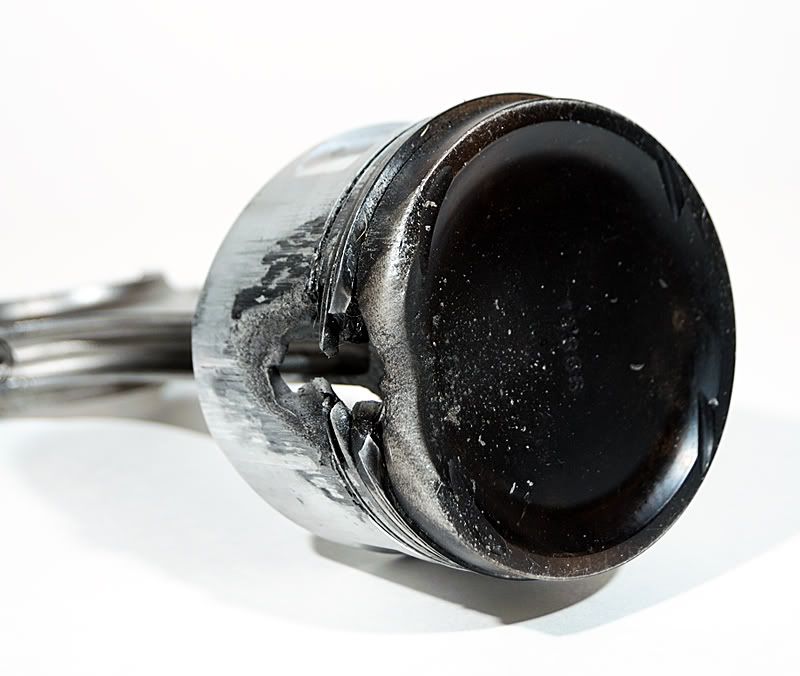

This is out of 180sxdrifters DSM, Ross piston, Eagle rod. The dipstick blew out and lost all oil. This is the end result.

BigWhiteTodd · 12-07-2008, 12:02 AM

Wow that's crazy that's a nice whole.

fballman1987 · 12-07-2008, 12:03 AM

wait thats not normal? haha. that sucks. def the weirdest hole on a piston ive seen.

doug · 12-07-2008, 12:05 AM

looks like a helluva lean spike..

CleanNeon98 · 12-07-2008, 12:08 AM

I'm sorry, that was out of a DSM?! LOL, nice shots as usual Steve.

EKLIPZGSX97 · 12-07-2008, 12:08 AM

That almost looks like an improperly gapped ring? Oiling a motor out would wipe rod/main bearings out and cause a seizure there first...

howielong · 12-07-2008, 12:11 AM

He had the motor built at a shop, and since day one it burnt oil.

Quote:

Originally Posted by CleanNeon98

I'm sorry, that was out of a DSM?! LOL, nice shots as usual Steve.

Quick shots at 10pm tonight

EKLIPZGSX97 · 12-07-2008, 12:15 AM

Quote:

Originally Posted by howielong

He had the motor built at a shop, and since day one it burnt oil.

Improperly gapped rings FTW

Eclipse GSX 61 · 12-07-2008, 12:19 AM

Hahaha KABOOM.

SpendOne · 12-07-2008, 12:25 AM

Suxors but it happens. Just time to build again.

howielong · 12-07-2008, 12:37 AM

I believed it returned the car to stock or close to it, he's looking at selling it soon i believe.

assault187 · 12-07-2008, 12:38 AM

That looks to me like too much timing advance... If it were an oiling issue, you wouldnt see a whole in the top side of the piston, You would see the rings melted flush with the skirt. If it were a LEAN issue, you would see a whole burned into the top of the piston.

My piston rings were gapped too large at .035 instead of the usual .019....It obviously burned mass amounts of oil and blew the dipstick out all the time, but took its beatings like a champ untill the day I put it down

SovXietday · 12-07-2008, 12:58 AM

Looks and sounds to me like the engine wasn't built OR tuned right. That piston has detonation written all over it.

180sxDrifter · 12-07-2008, 12:59 AM

Yea that motor burnt through a case of oil in a week, I was tired of putting oil in it everyday and I was planning on rebuilding it for my new turbo setup. That night I was running a stock ecu & the dipstick blew out on the blvd and I just kept racing down rt1 untill there was no oil left. I felt it was time to put that motor to rest so I wanted to put it down while having some fun at the same time, some huge flames came out the exhaust haha

Teku18 · 12-07-2008, 02:25 AM

Quote:

Originally Posted by 180sxDrifter

Yea that motor burnt through a case of oil in a week, I was tired of putting oil in it everyday and I was planning on rebuilding it for my new turbo setup. That night I was running a stock ecu & the dipstick blew out on the blvd and I just kept racing down rt1 untill there was no oil left. I felt it was time to put that motor to rest so I wanted to put it down while having some fun at the same time, some huge flames came out the exhaust haha

lol damn jb. way to go out big. lol

Slow_EJ8 · 12-07-2008, 11:19 AM

That'll buff out

lownslow95 · 12-07-2008, 11:27 AM

damn that sucks.

Sled · 12-07-2008, 11:33 AM

thats what my #7 cylinder piston looked like when i blew up my stock motor. 8psi threw a stock motor with 30degrees of timing was a bad idea!

jdm free · 12-07-2008, 01:59 PM

oh god. nice pics steve. josh time for a honda

SovXietday · 12-07-2008, 04:17 PM

Quote:

Originally Posted by Sled

thats what my #7 cylinder piston looked like when i blew up my stock motor. 8psi threw a stock motor with 30degrees of timing was a bad idea!

30* !!!

That's a lot of timing, lol.
