Orbit · 02-03-2006, 11:42 PM

i got home from work today and it was soo warm out ! I thought to myself, it would be silly to not work on the car today. so i decided to port and polish my throttle body.

here are some shots

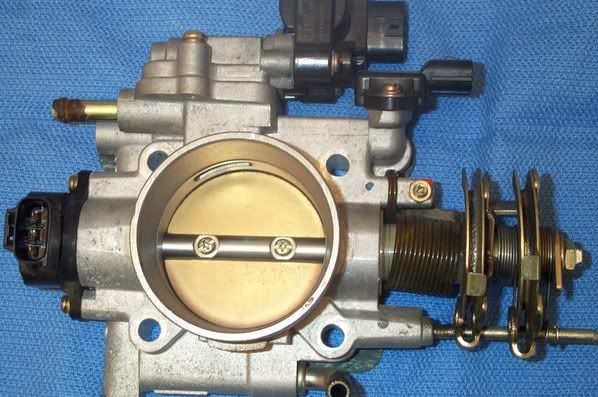

before

before (notice screws sticking up)

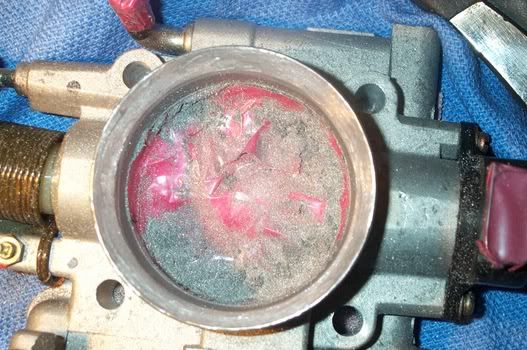

during

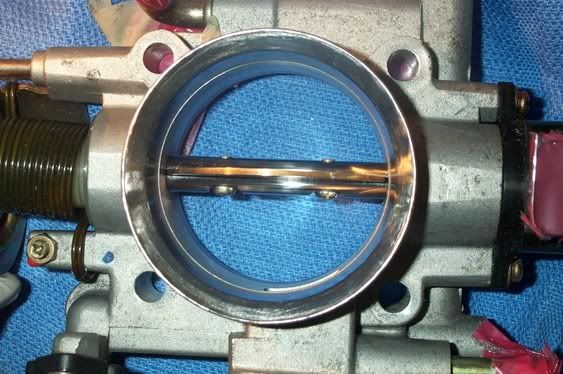

after

the car felt a little more responsive afterwords. almost the same feeling you get after doing ic hoses, just not as much.

sesolcSTI · 02-03-2006, 11:51 PM

Nice clean job jamie! Can you do mine please? haha.

BlackBulletTSi · 02-03-2006, 11:52 PM

Yea that is a very clean job

sesolcSTI · 02-03-2006, 11:55 PM

Well, Jamie is a clean kinda guy! Maybe you can squeeeeeeeeeeeze out that last 1/10th you need now man!

2point4DSM · 02-04-2006, 12:08 AM

Good job! Looks good. On my DSM I shaved down the shaft a little bit too and put a bevel on the throttle plate. I swear it was good for 2hp. But that is what I say for all the port and polish work I do, lol.

07BlackSS · 02-04-2006, 01:10 AM

Anyone want to walk me through the process and help me out wiht this

JohnnyWas · 02-04-2006, 03:57 PM

good job. very professional.

Orbit · 02-04-2006, 04:06 PM

thanks guys. I left the bottom little shoulder just in case it effects idle. and left the top slightly blunt to avoid it cutting into the silicon hose.

i used a carbide bit,sand stone, flapper wheel, crytex bit and finally a polishing wheel. The whole project took about 3 1/2 hours. not bad, but man my arm was numb after.

2point4DSM · 02-04-2006, 04:30 PM

Quote:

Originally Posted by Orbit

The whole project took about 3 1/2 hours. not bad, but man my arm was numb after.

Bryan was complaining of numb fingers for days. Just something you have to get use to when you P&P, lol.

**TROLL** · 02-04-2006, 04:41 PM

so did you just work on the tb inlet and not the outlet? doesnt look like you messed with the ridgd where the flapper seals shut... i didnt either.
i really only worked with the first inch or so of my tb inlet to taper it a bit because i didnt want to go too far and mess anything up.
its easy to get to so maybe down the road i'll work on it a bit more.
anyways, looks real good and i'm interested to know your technique on this and what you did and didnt touch.

Orbit · 02-04-2006, 05:07 PM

Exactly what i did. about an inch. I don't want to mess with anything that may need to be there.
Did you do the throttle body coolant bypass? I was going too, but i don't want too until i know exactly why it is there to begin with.

Quote:

Originally Posted by TROLL

so did you just work on the tb inlet and not the outlet? doesn't look like you messed with the ridgd where the flapper seals shut... i didnt either.
i really only worked with the first inch or so of my tb inlet to taper it a bit because i didnt want to go too far and mess anything up.
its easy to get to so maybe down the road i'll work on it a bit more.
anyways, looks real good and i'm interested to know your technique on this and what you did and didnt touch.
