crazy2sin · 04-21-2011, 10:41 PM

Worked on the box I had made to house my cell phone permanently on the bike for my portable dashboard
Marking the window.

Cleaned the cuts up.

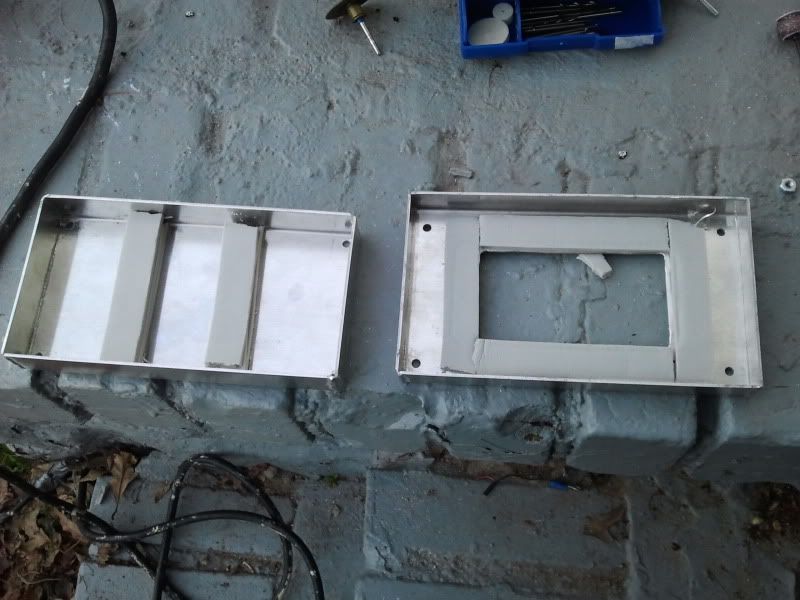

Used weather striping to hold the cell phone.

Bolted lid and bottom together.

Now to get the bottom set up to mount to the bars and then just get it powder coated.

MX5 · 04-21-2011, 10:59 PM

Nice, what are you using to get all the info from the bike to the phone?

crazy2sin · 04-21-2011, 11:43 PM

It connects via a obd scantool using bluetooth.

Slevin · 04-22-2011, 02:07 AM

good work man, paint it black to match the bike

Archie · 04-22-2011, 07:43 PM

how quick can you get it out to catch a call?

crazy2sin · 04-22-2011, 08:18 PM

Quote:

Originally Posted by Archie

how quick can you get it out to catch a call?

Old phone so no sim card so its a dedicated bike phone for the app.

crazy2sin · 04-22-2011, 09:05 PM

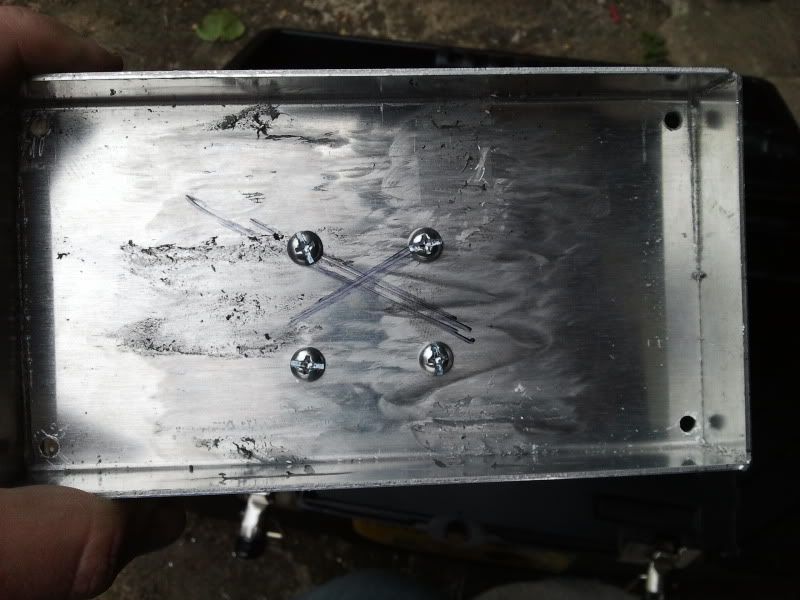

Finished up the box for my portable dashboard today. First drilled some holes in the bottom to mount to the plate i have that goes onto the stock risers.

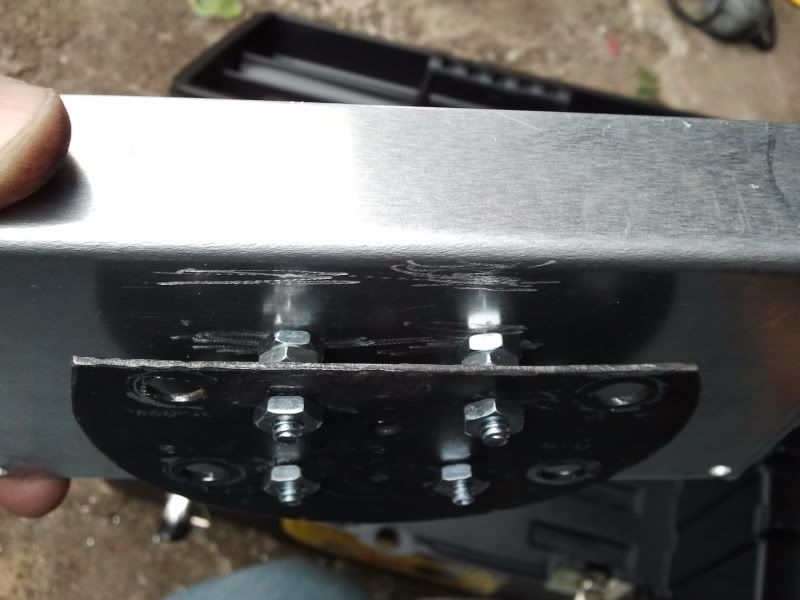

Then the setup for the box to be mounted to the plate.

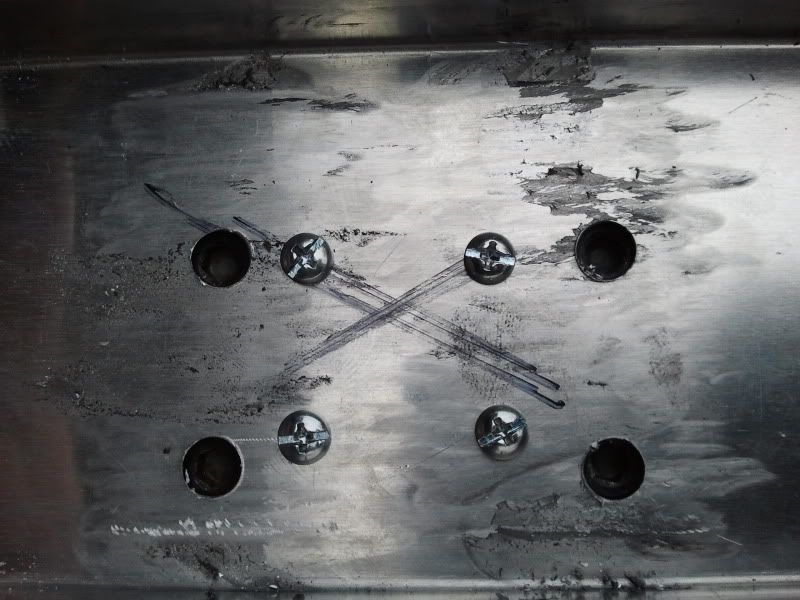

Then I realized I wont be able to bolt down the plate to the risers with the way I set it up so decided to just drill thru so I could tighten them thru the box.

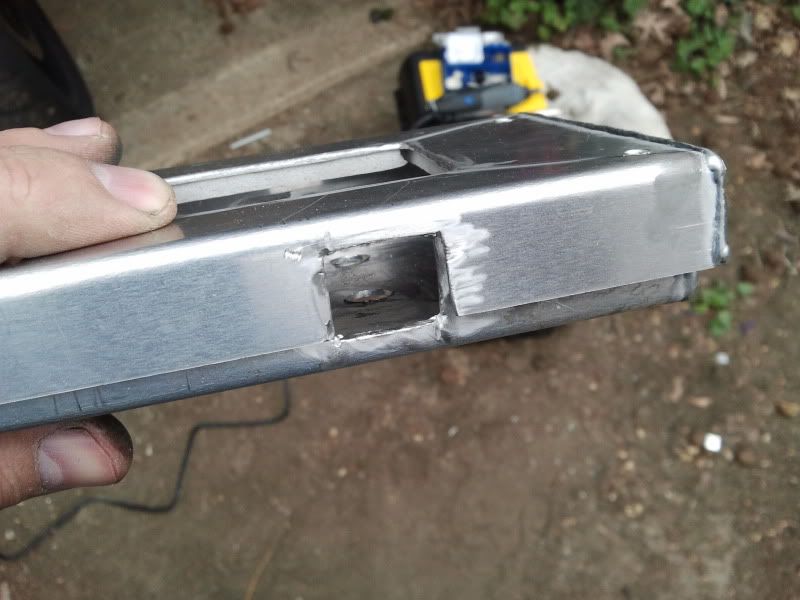

Then cut along the top for the charger cable and my finger so I can turn off the phone.

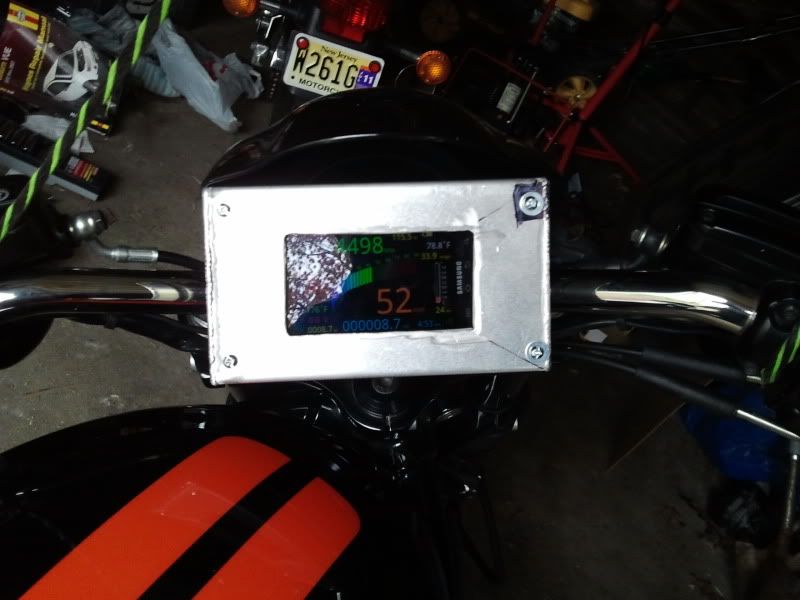

And it kinda on the bike, not mounted all the way down.

SovXietday · 04-23-2011, 12:16 PM

Did the box really need to be quite that big?

crazy2sin · 04-23-2011, 01:10 PM

To fit the charger cable with sticks out of the left side of the screen so then i needed to have the right side be even
