Blktopsil80's S14 SR 180sx Build : Wheels Just Arrived (Pic On Last Post)

[KINGRICHARD]

SWEET!!! the motor looks like it belongs in there..cant wait to see it on the road. Maybe the newfound TOYOTA POWER will keep you futher away from the long arm of the law....lol

[BLKtopSIL80]

srry guys i havent kept u up to date...i have been swamped at work but ill have some good pics of the build up this week so stya tuned

[BLKtopSIL80]

ok guys srry bought the ****ty cell phone pics, im still waiting on my new camera but heres some progress on my car....

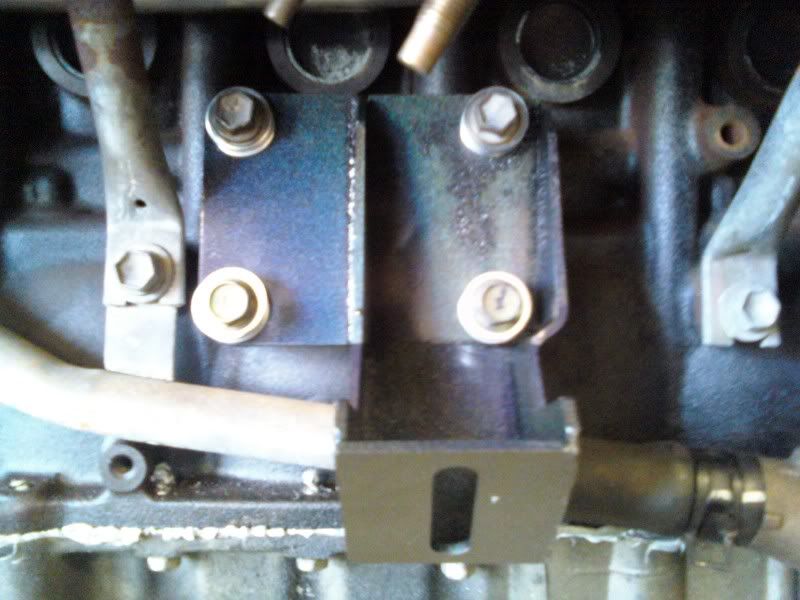

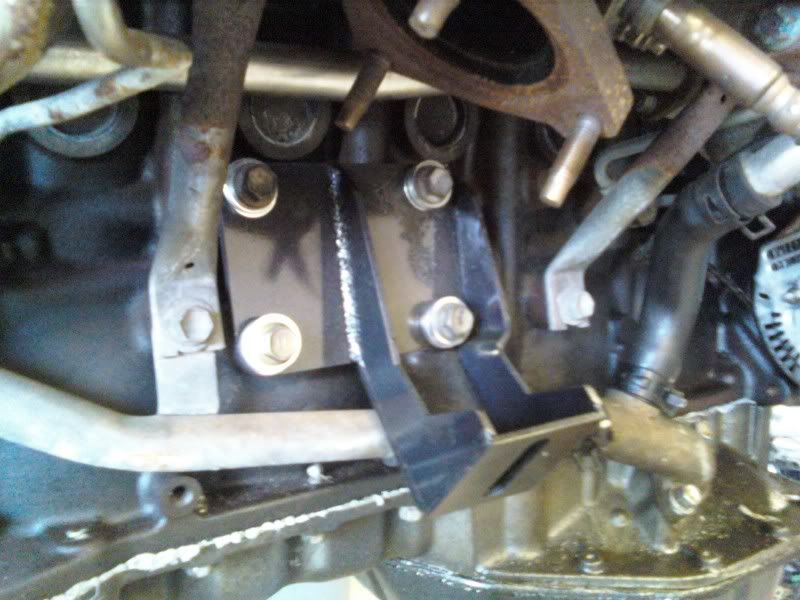

finally got my rukus racing mounts..

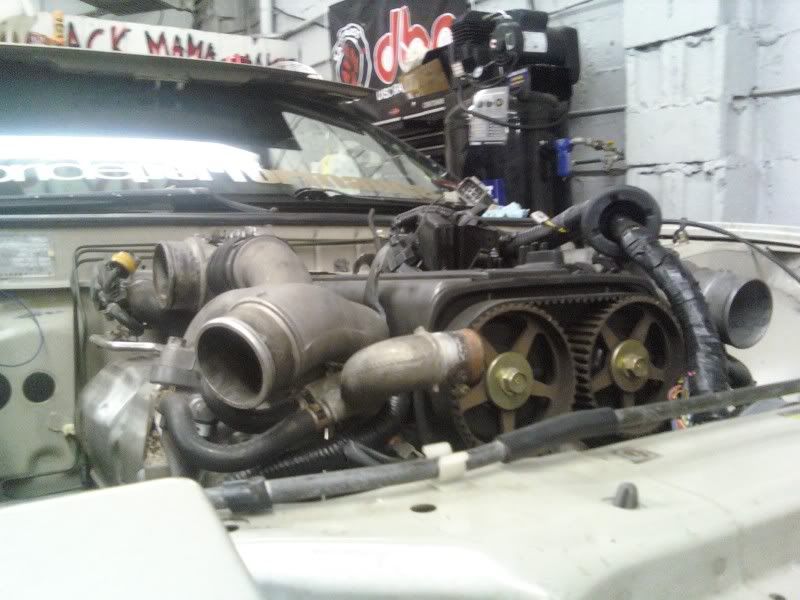

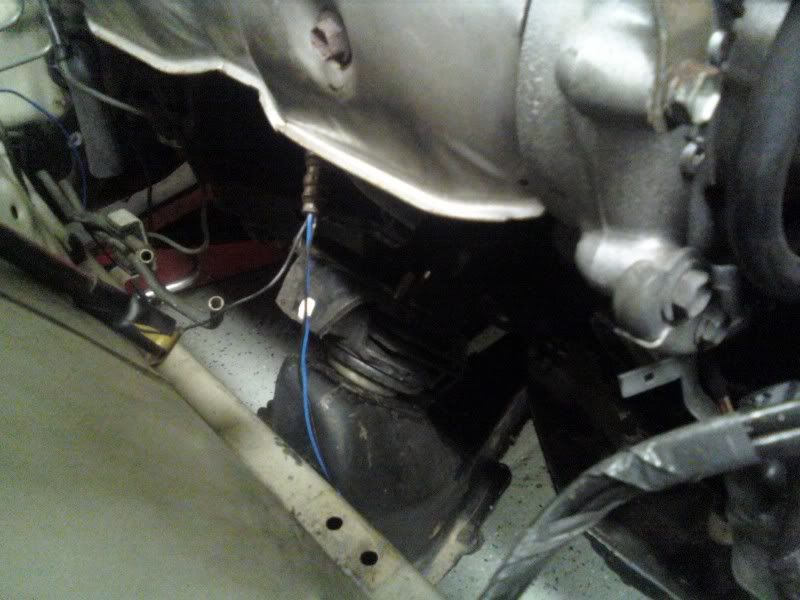

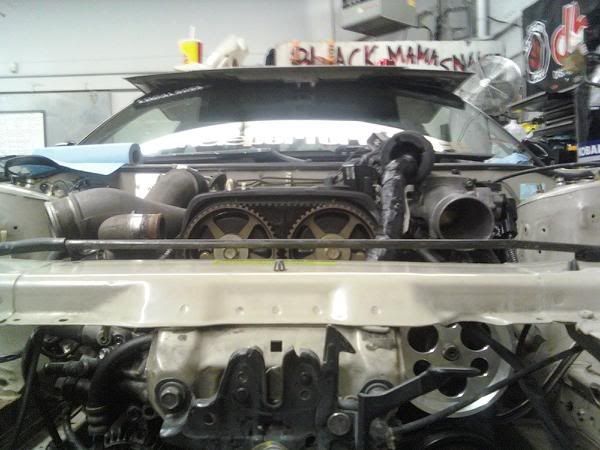

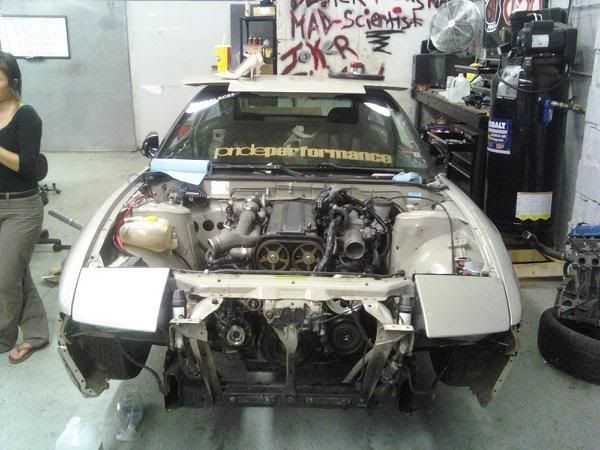

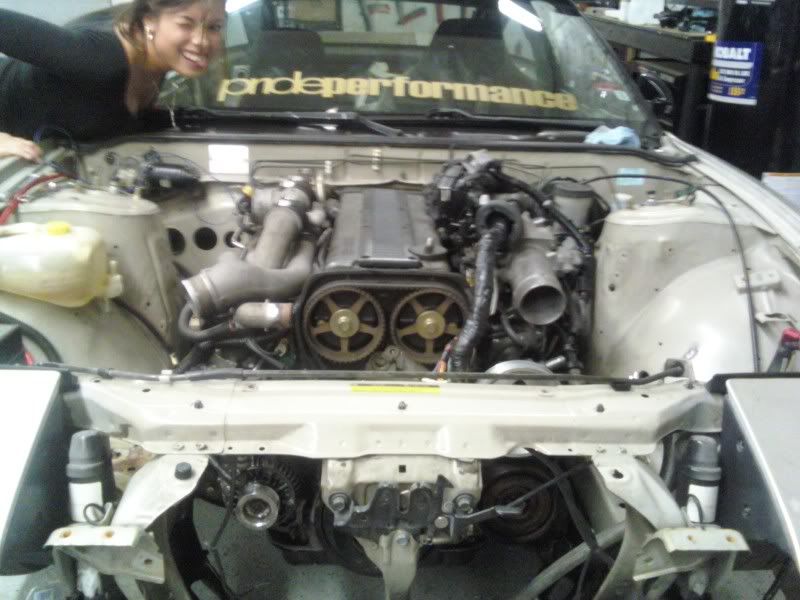

Now that the mounts were on this is how that motor sat ( to tell u the truth it fit better than my rb)













We are also using the stock ka mounts for now until my solid sr mounts come in...

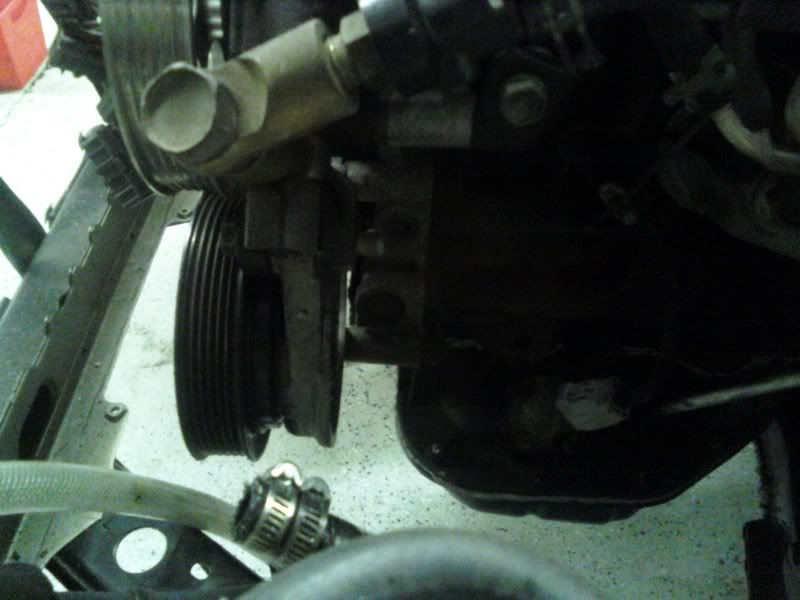

Removed the A/C Compressor and made a dummy pulley..



Intercooler bracket that i made and my mishimoto black fmic...

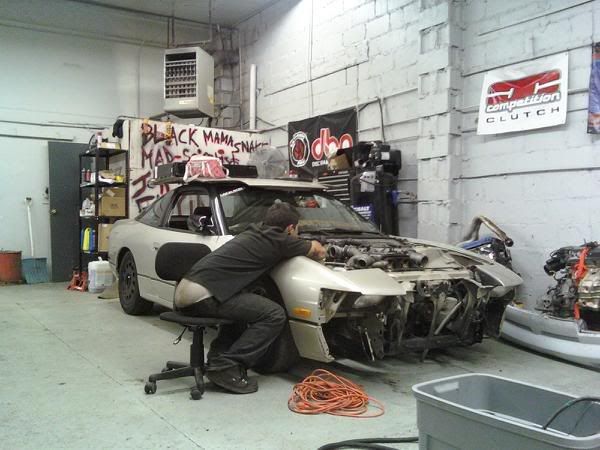

Last but not least me contemplating what i want to do next hahaha



NOT SHOWN IN PICTURES:
- Mishimoto KA rad
- Driveshaft Shop Custom One Peice Drive Shaft (On the way)
- Custom Shifter Extension
- Buddy Club Spec 2 (On the way)
- Custom DownPipe (In the process of being made)
- Tial 50mm BOV (On the Way)

and there is also some misc. interior peices going in but ill label them as i get them.

[BLKtopSIL80]

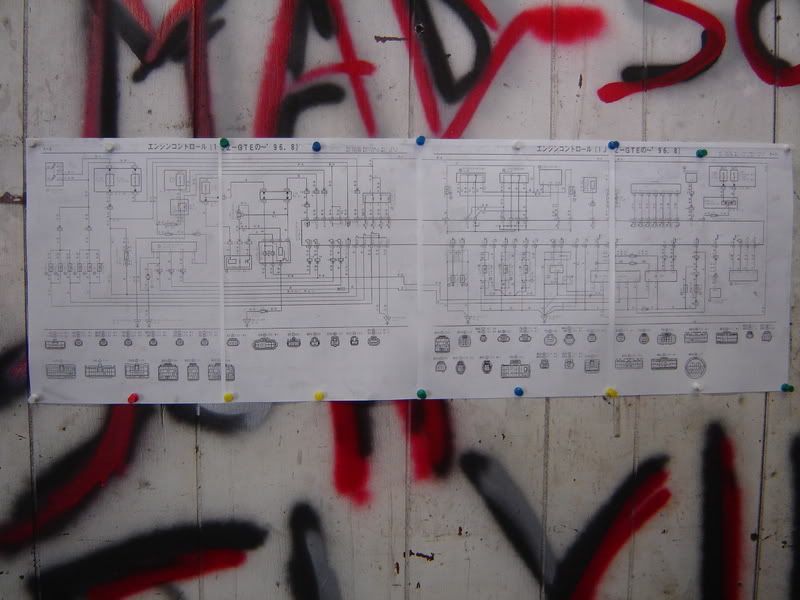

finally found this today

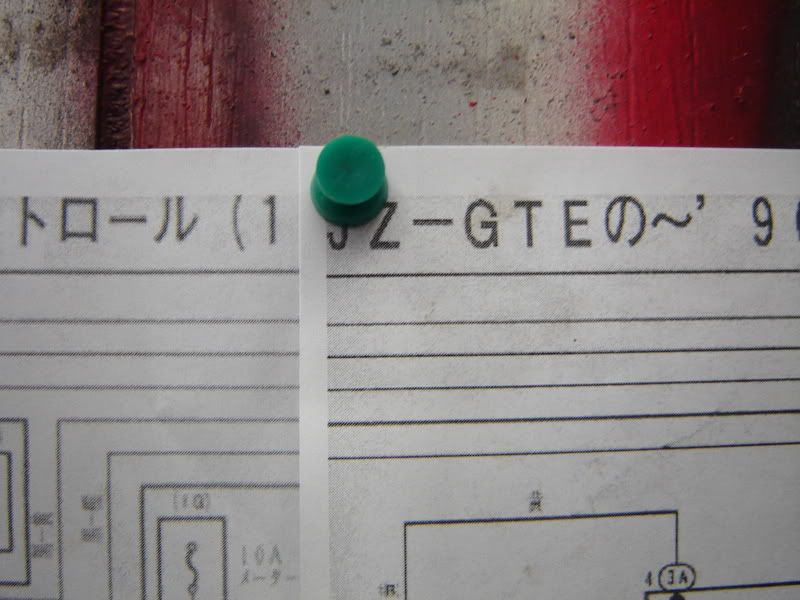

full wiring diagram for the 1jz :green:

[BLKtopSIL80]

Mishimoto Intercooler

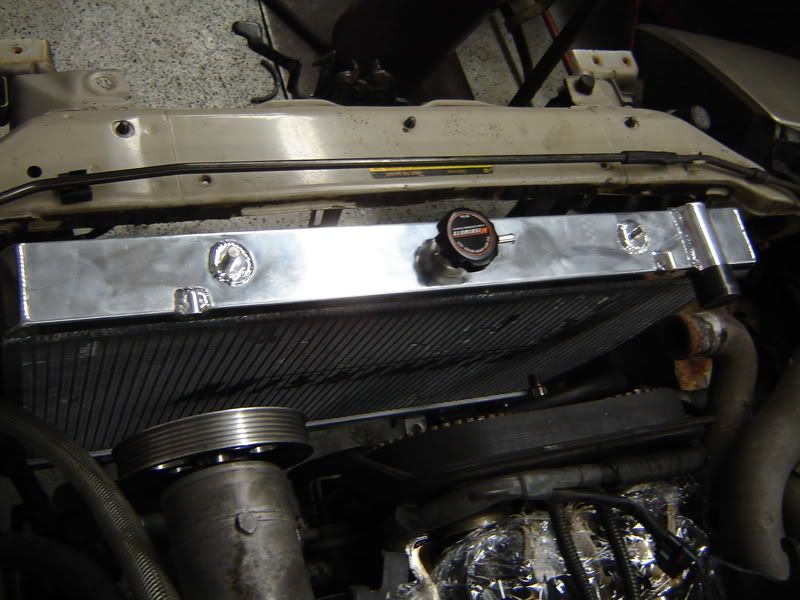

Mishimoto Rad

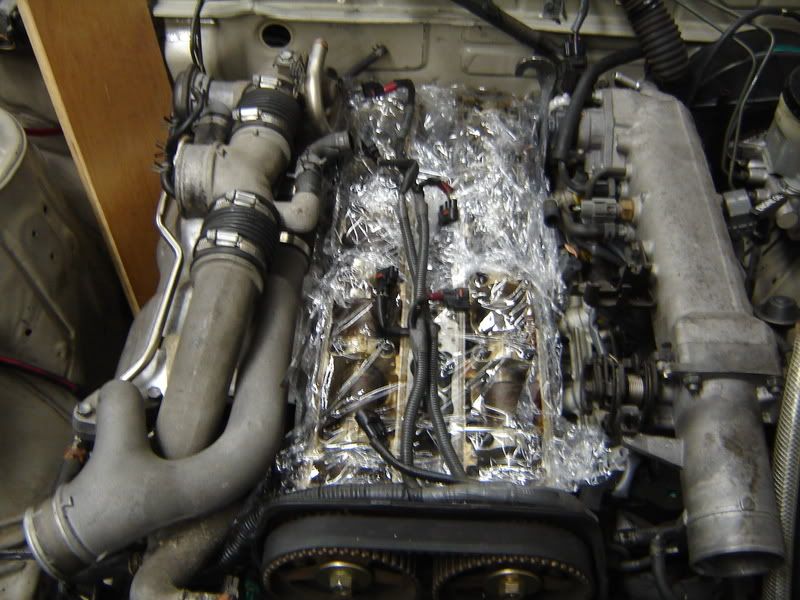

I wonder were the valve covers went (Maybe Powdercoating?)



Greddy Oil Catch Can

[jdmwill]

very nice i like........... kepp up the good work bro.

[BLKtopSIL80]

well made some progress today...

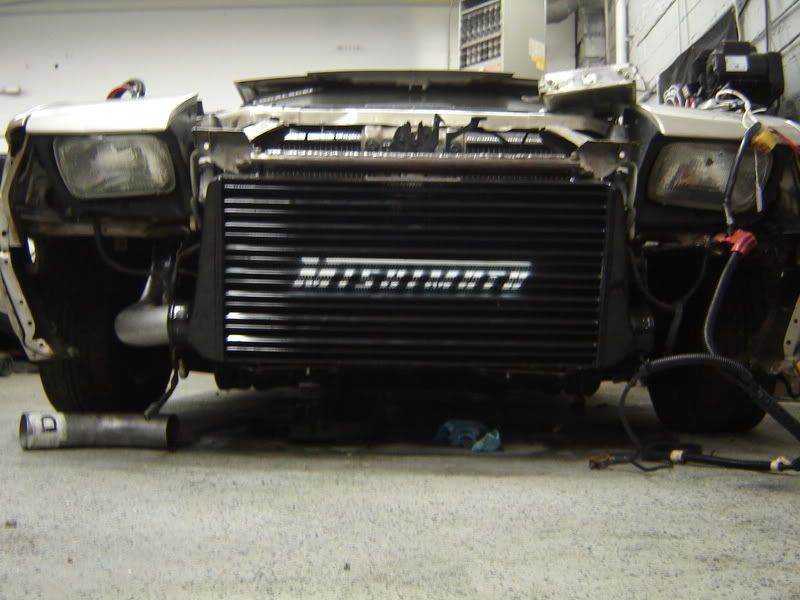

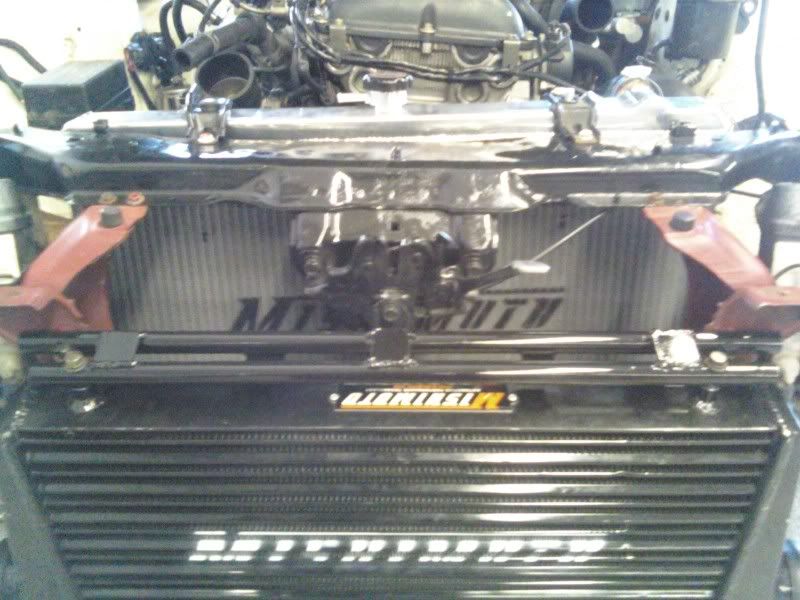

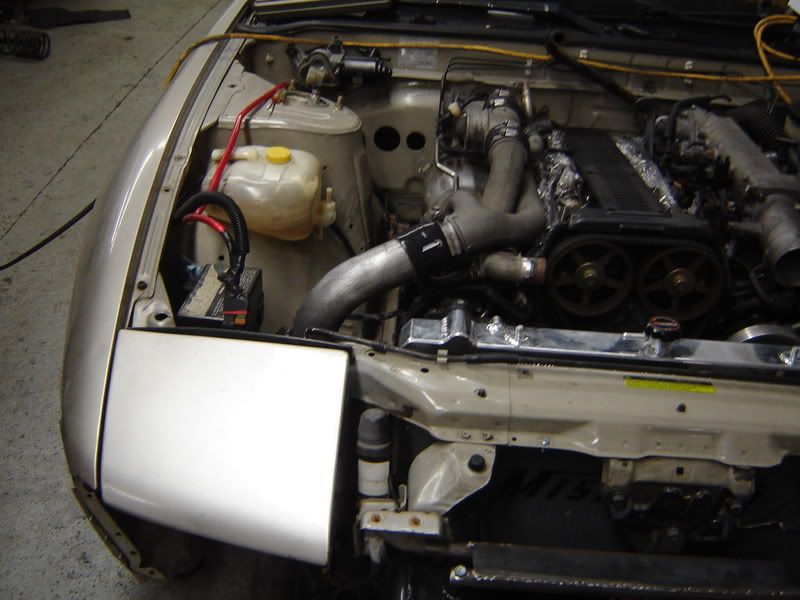

Mounted and installed my FMIC:

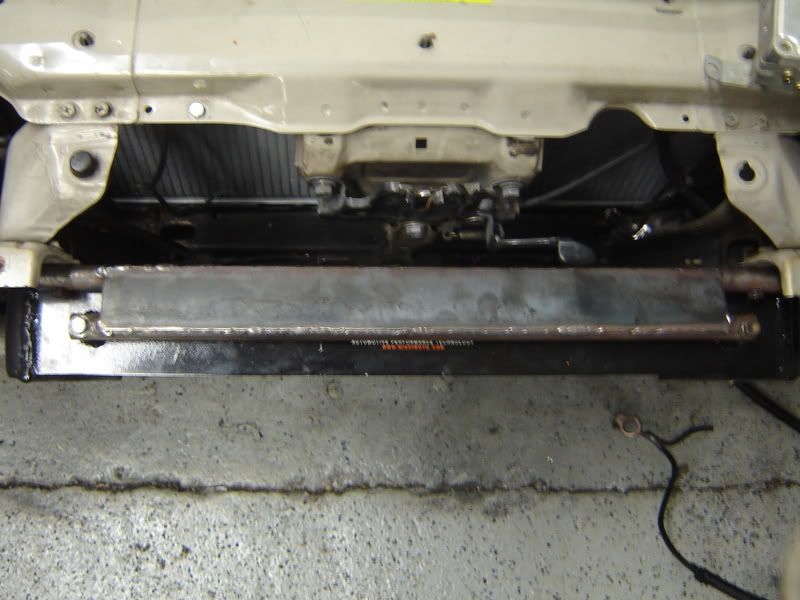

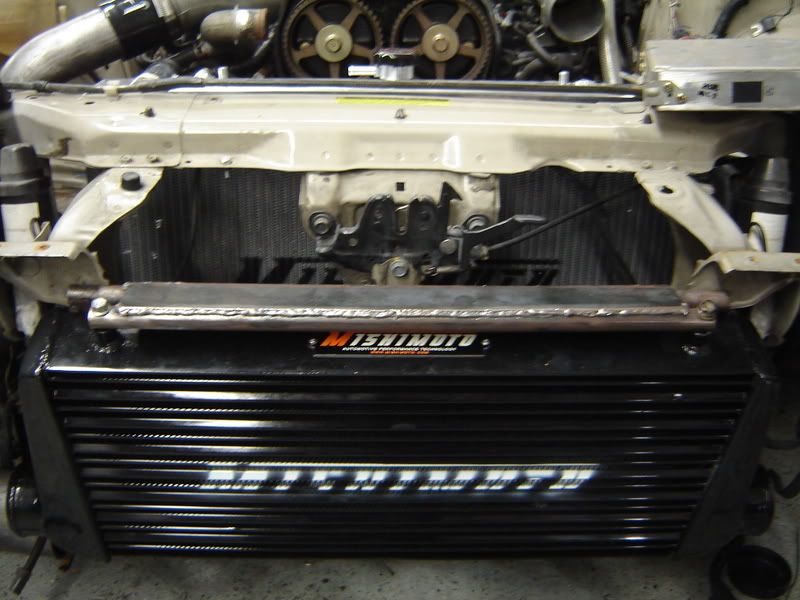

The bracket i made to hold my intercooler ( Not Done Yet):

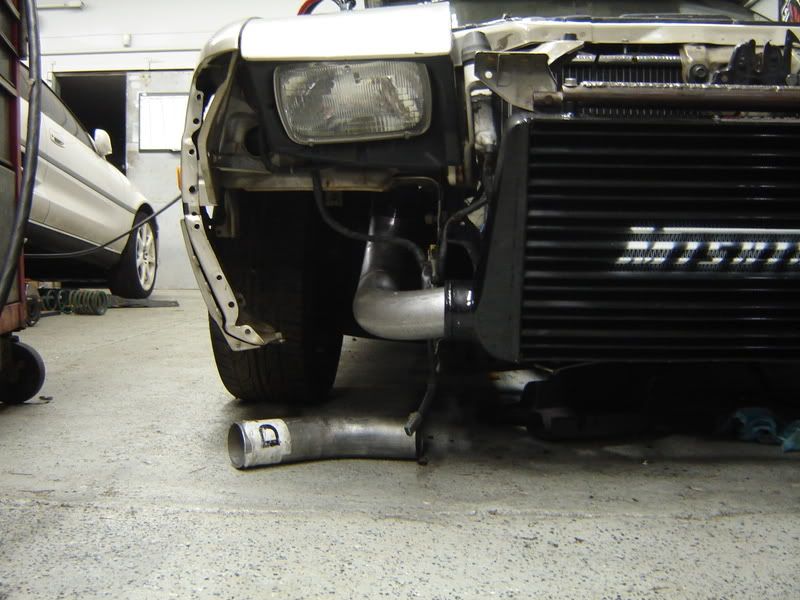

Started Mocking up my intercooler pipping, the hot pipe is all mocked up ( i have to go back and cut some angles so the hot pipe sits better) but i cant do the charge pipe until my charge pipe comes back from gettin tig welded:

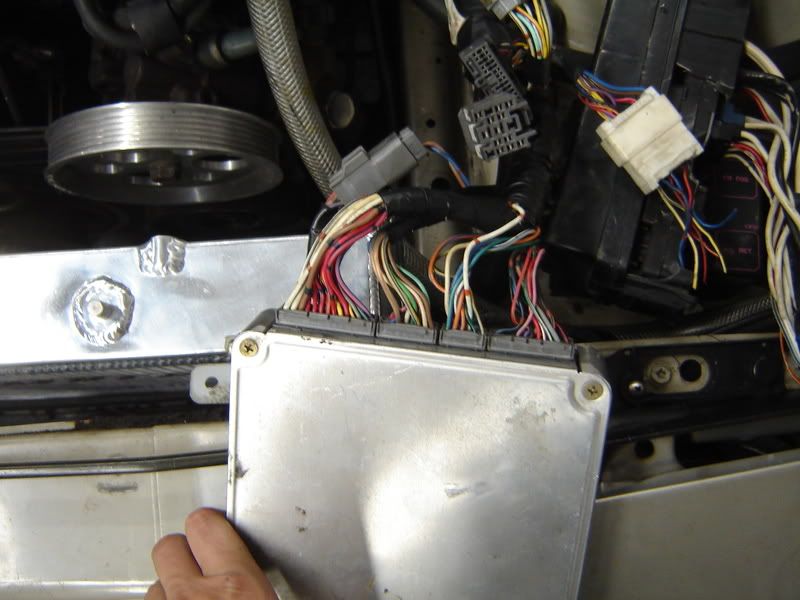

Finally got my Supra ecu, previously we had a soarer ecu:

[BLKtopSIL80]

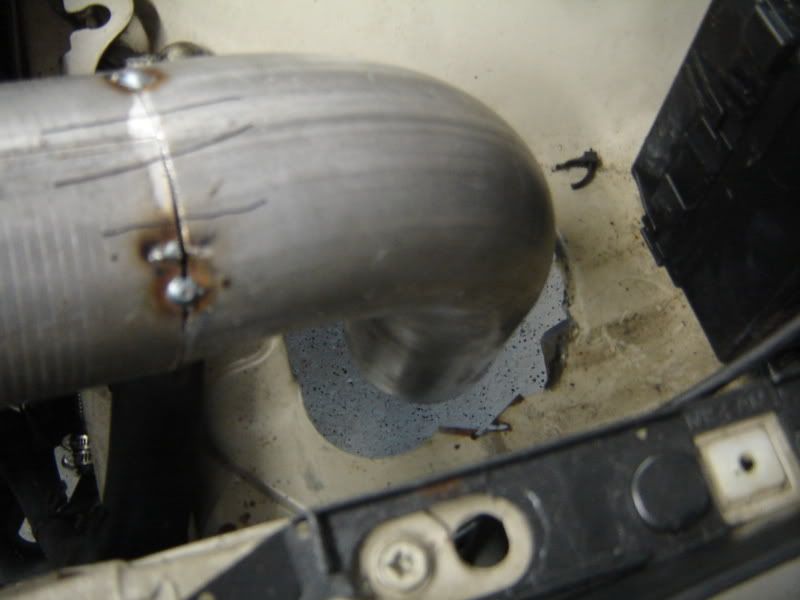

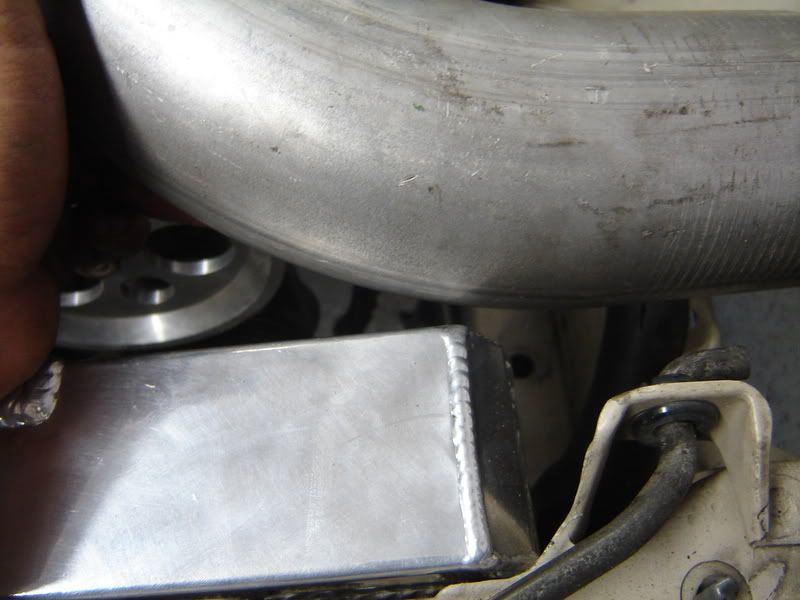

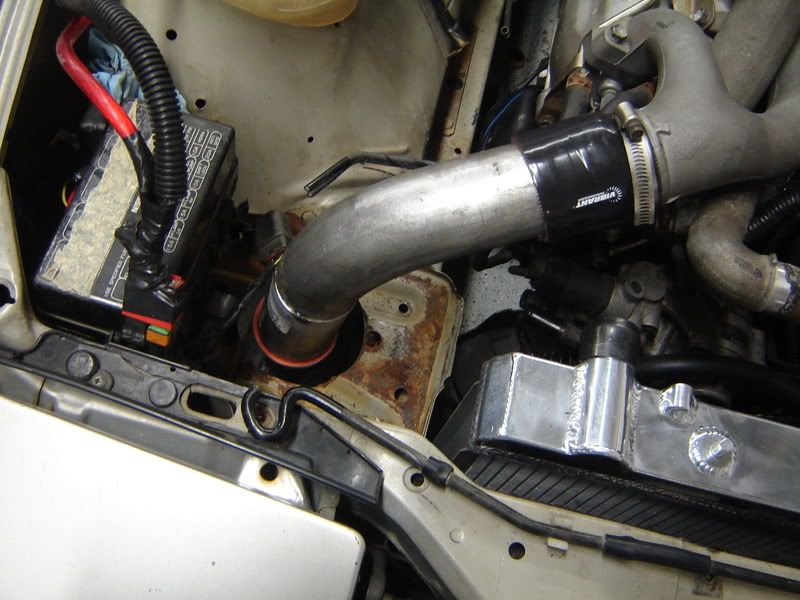

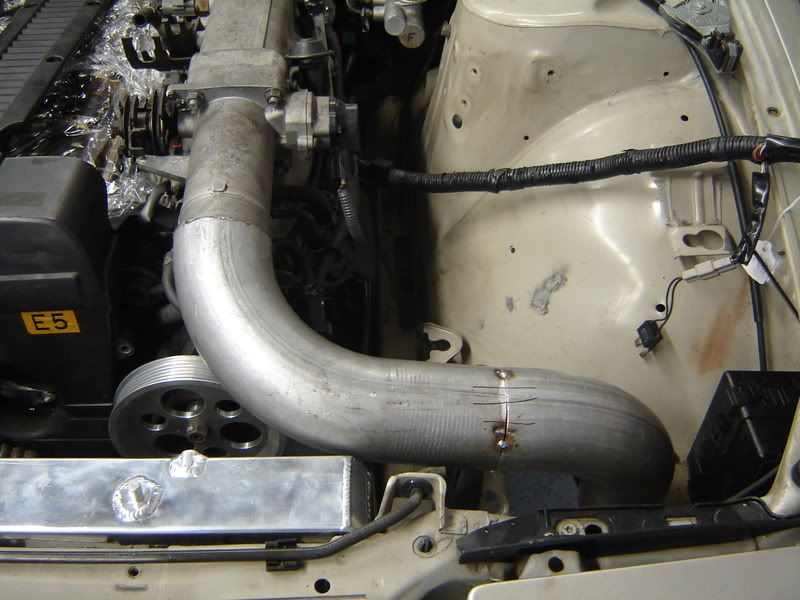

ok so today i finally got more pipping and started to mock up my charge pipe..i didnt want to to run a 90 degree coupler like most people are so i figured out what angle i needed to cut and made the angle....came out awesome....i will be finishing it up tomorrow when i get more couplers:

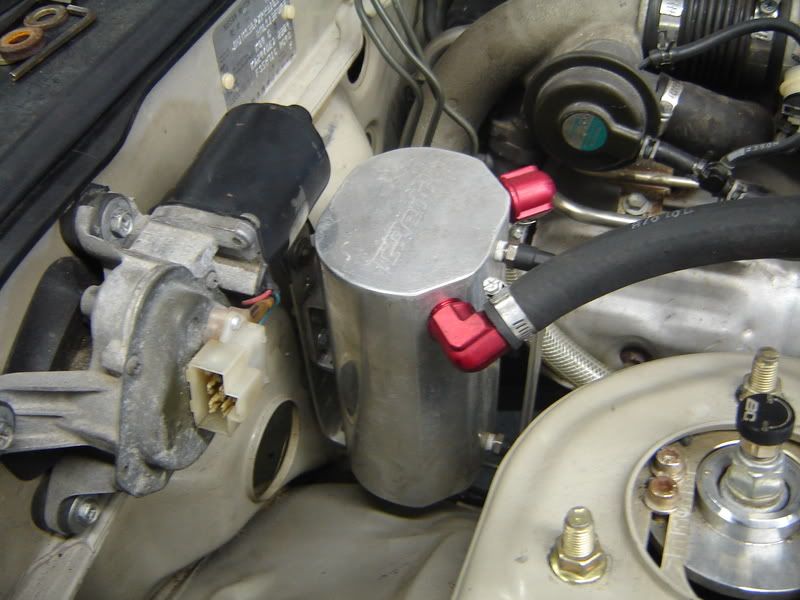

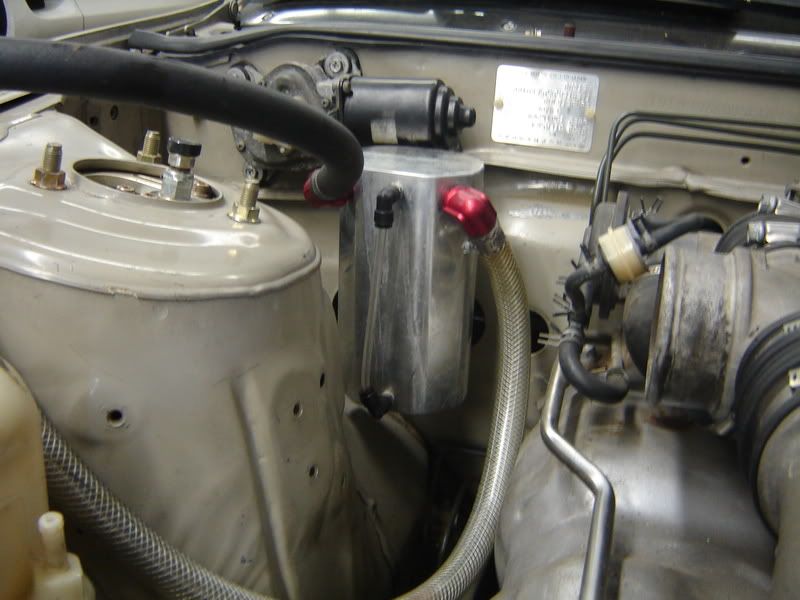

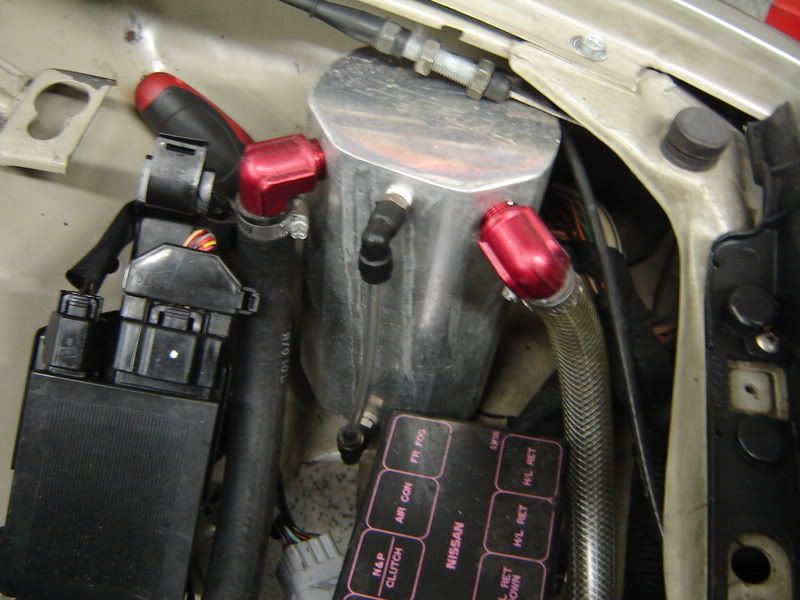

mounted my oil catch can in its new position:









Our new decals came in yesterday so i threw some on the car:



this is my favorite ha:

[omgjacki]

Haha awesome "inspection" sticker. Nice build. Can't wait to see it finished.

[AngeloAJC]

dude its lookin awesome...Good Luck

[BLKtopSIL80]

so im gonna vent a little bit.....so last night i go to hook up my powersteering and realize something...the person that had put my rb20 in had told me that we were gonna run my dual cam lines..so i get under the car last night a realize that pretty much all my dual cam powersteering lines were cut off and the lines were rigged to my old powersteering pump....come to find out that since my lines were ran that way it created to much pressure and blew a whole threw my high pressure line....so pretty much now i have to go out and buy oem dual cam power steering lines....awwwwssoommmmeee

[BLKtopSIL80]

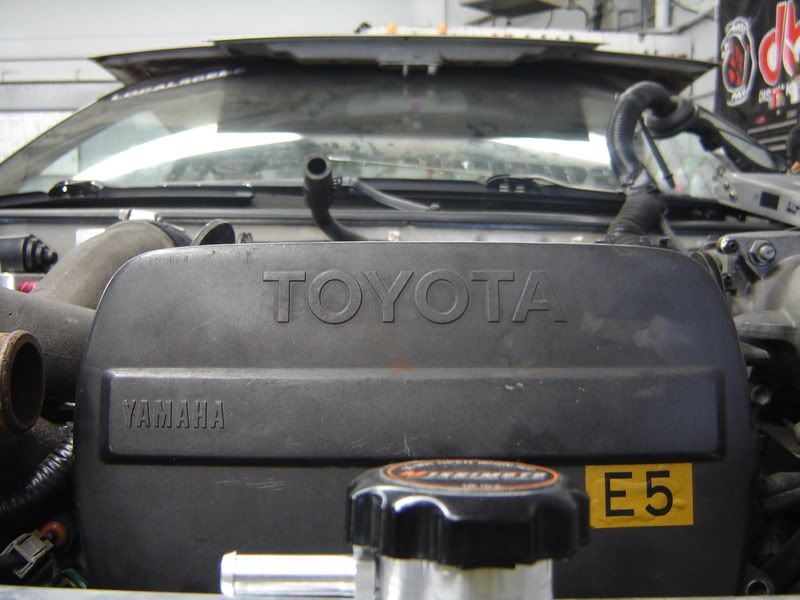

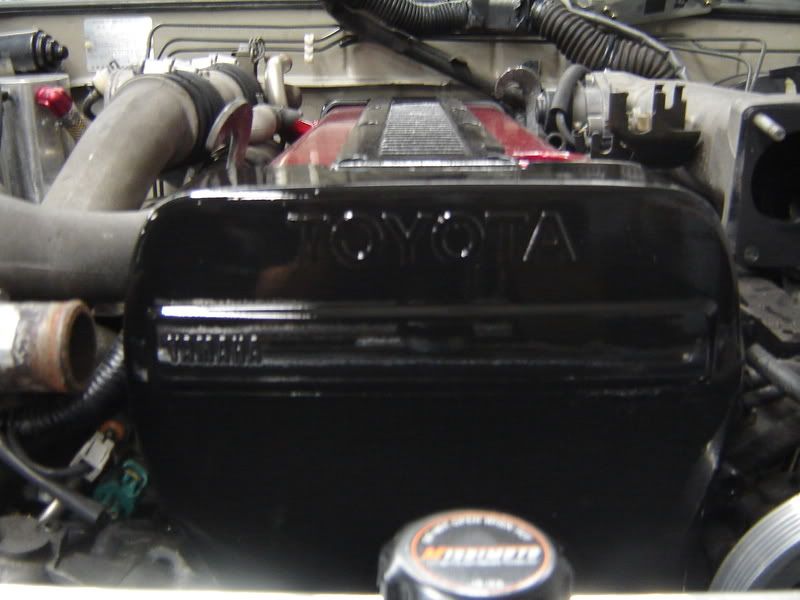

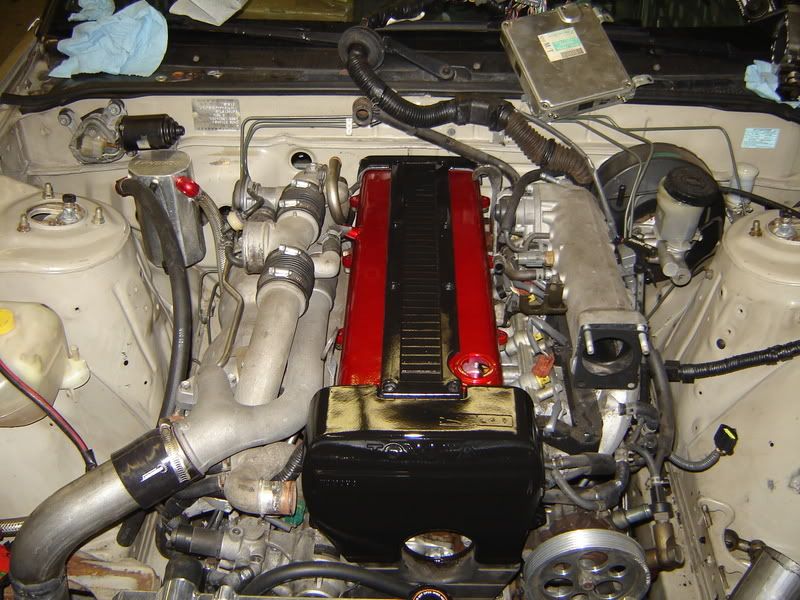

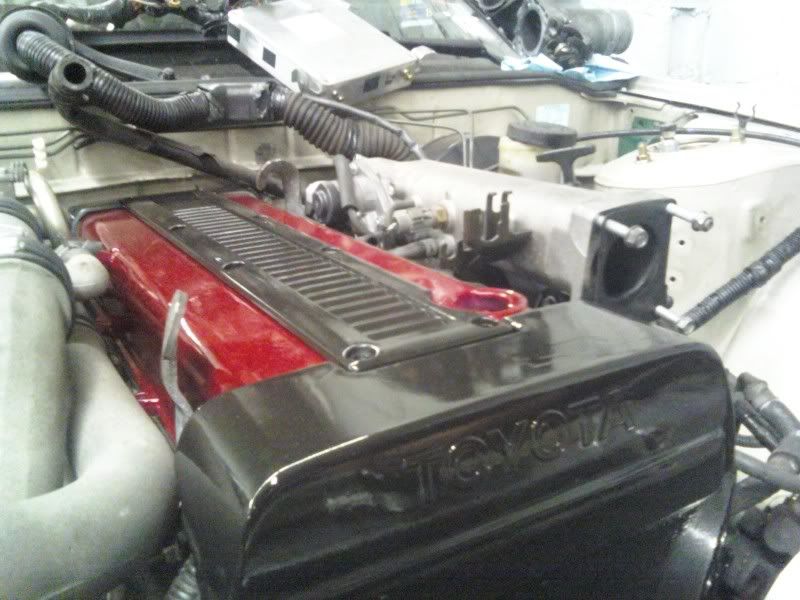

little preview of the valve covers back from powder coating...ill have better pics up tomorrow..

[BLKtopSIL80]

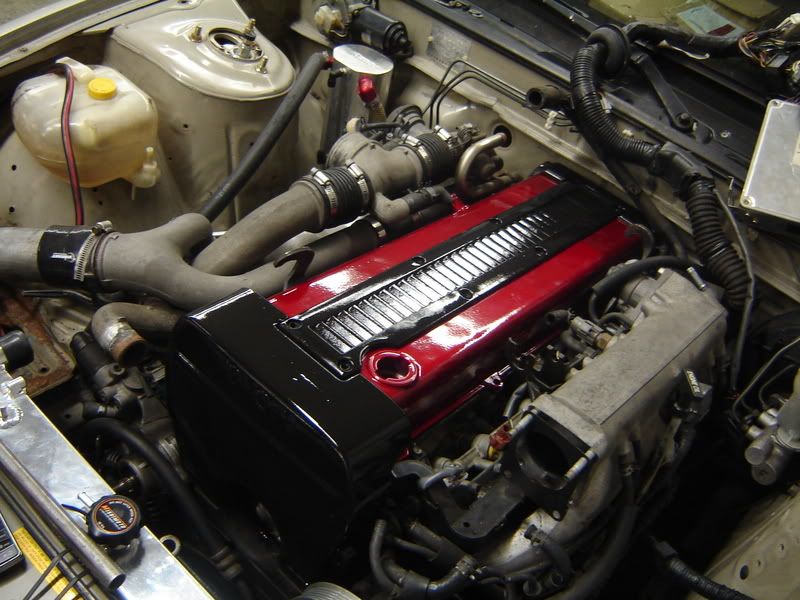

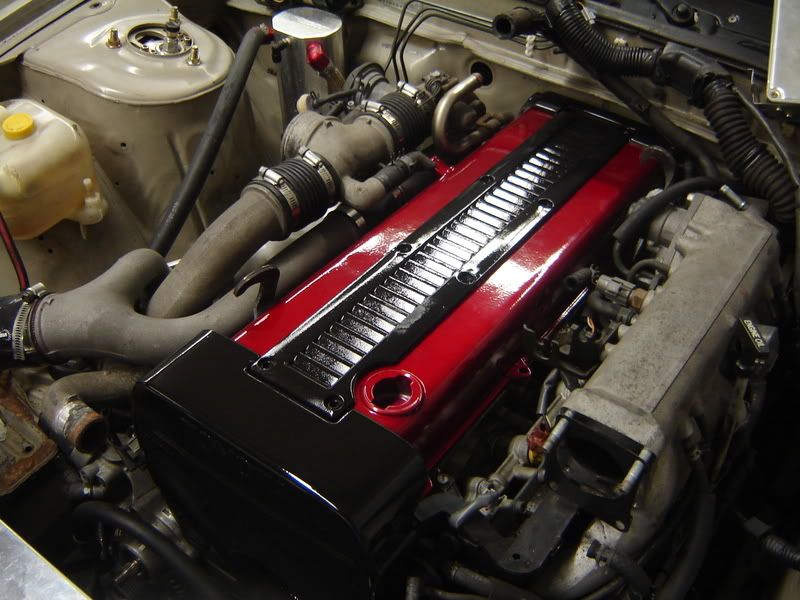

here are some more pictures of the covers....there semi decent....its needs to be in the day light to see how nice it came out:

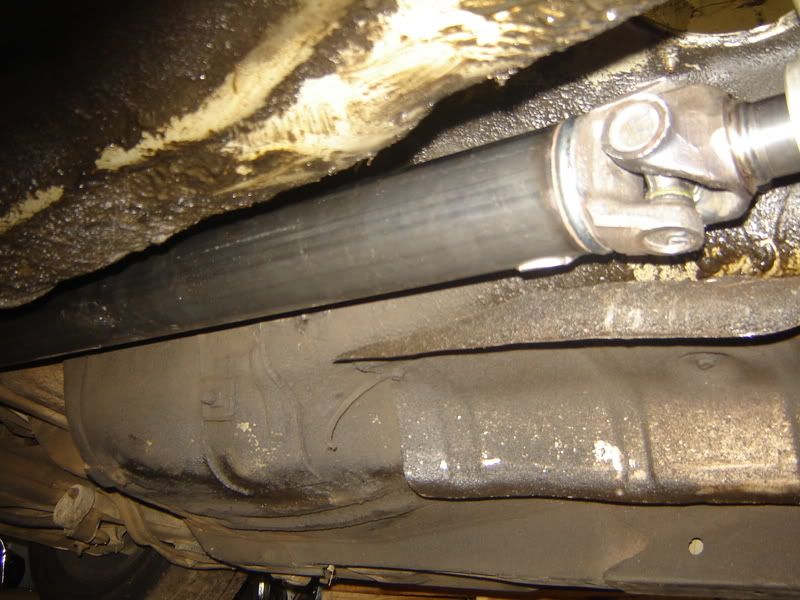

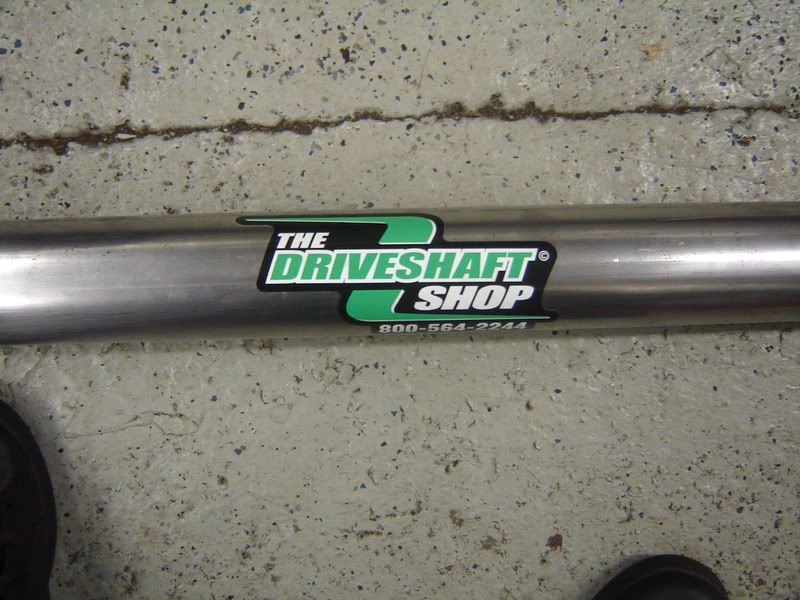

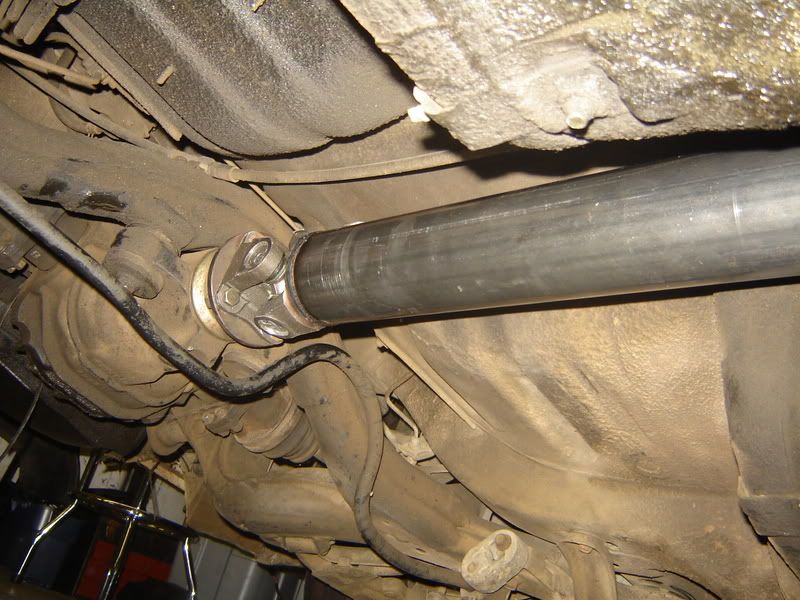

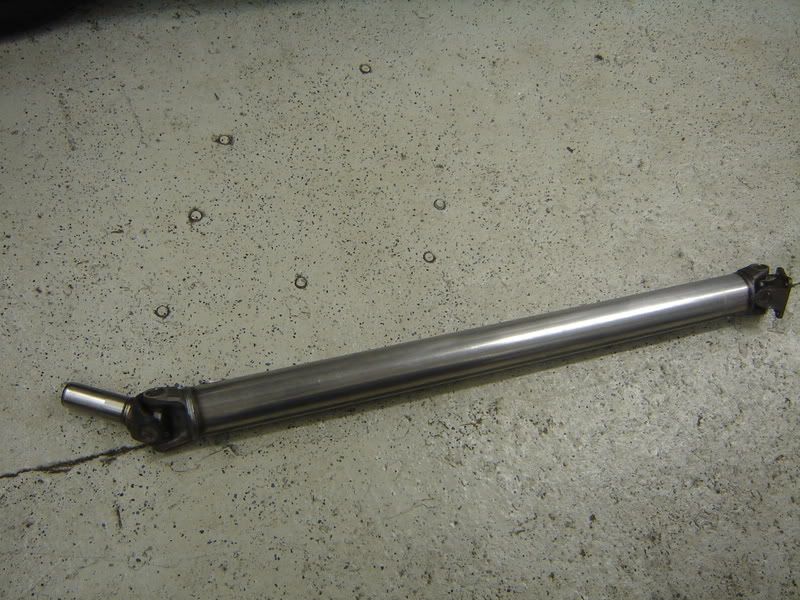

UPS was so kind as to deliver my drive shaft today:

[omgjacki]

Finally came in? Tara mentioned that it was taking forever.

Get the power steering lines taked care of yet?

[marshallpre1]

I love the 1J. Definitely a great motor!

[BLKtopSIL80]

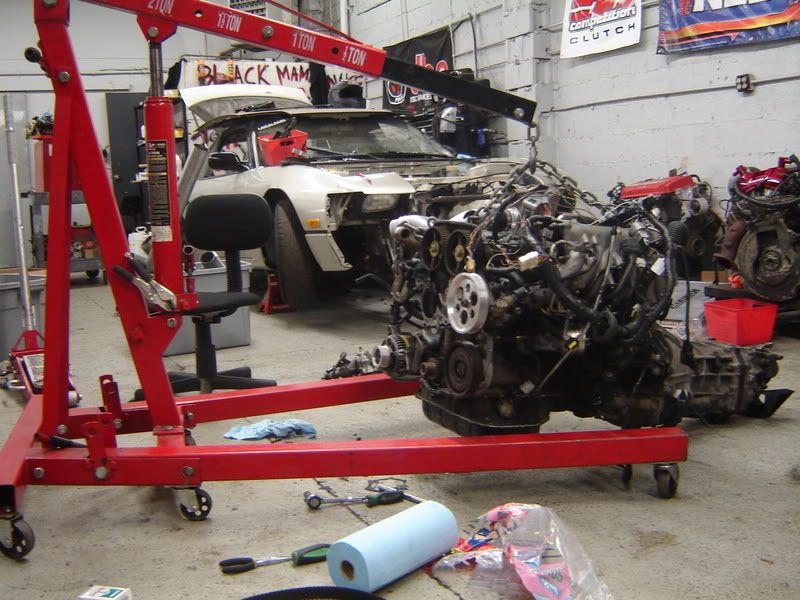

well the motor is out again lol

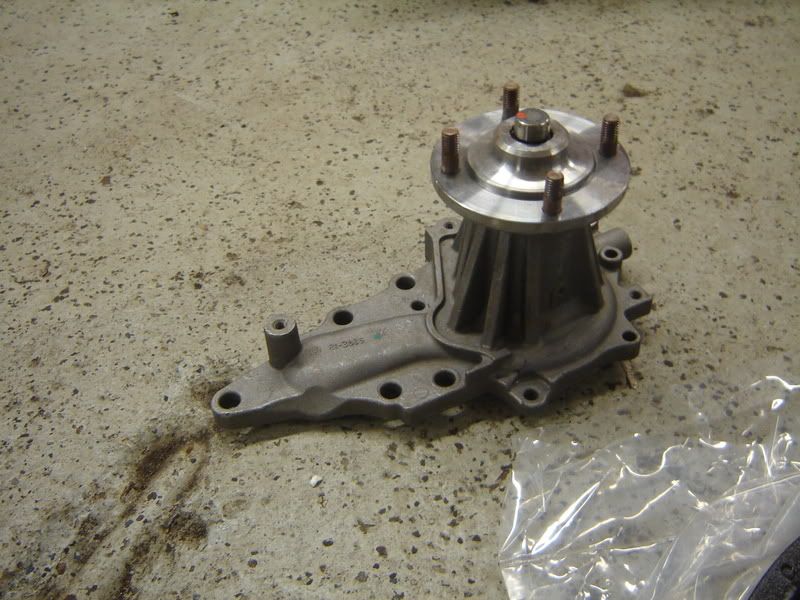

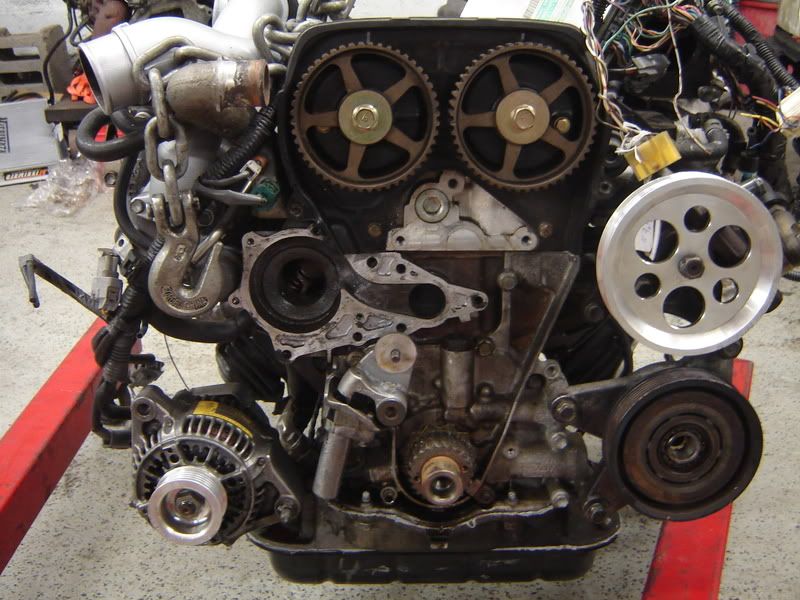

so tonite my plans were to change my waterpump and put my new timing belt on...that all came to a halt when i realized that i need the whole 2jz water pump assembly so i will be finishing it tomorrow..

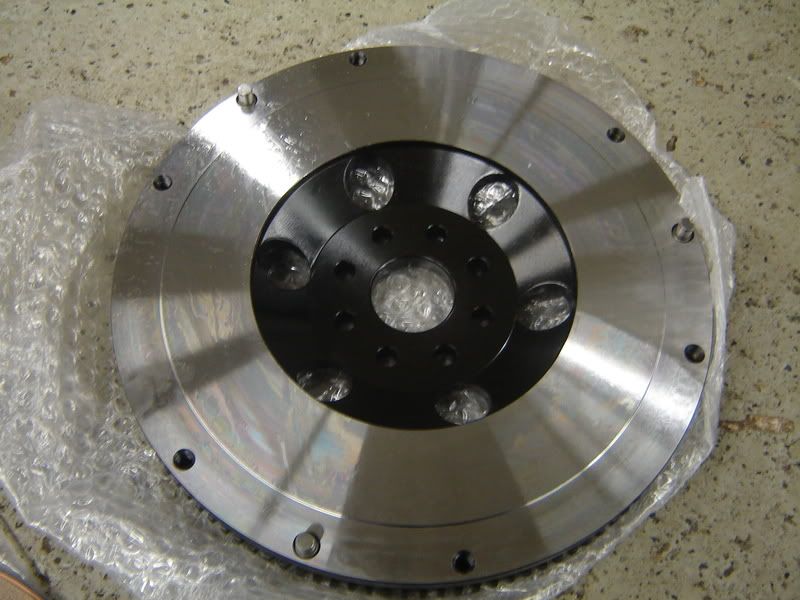

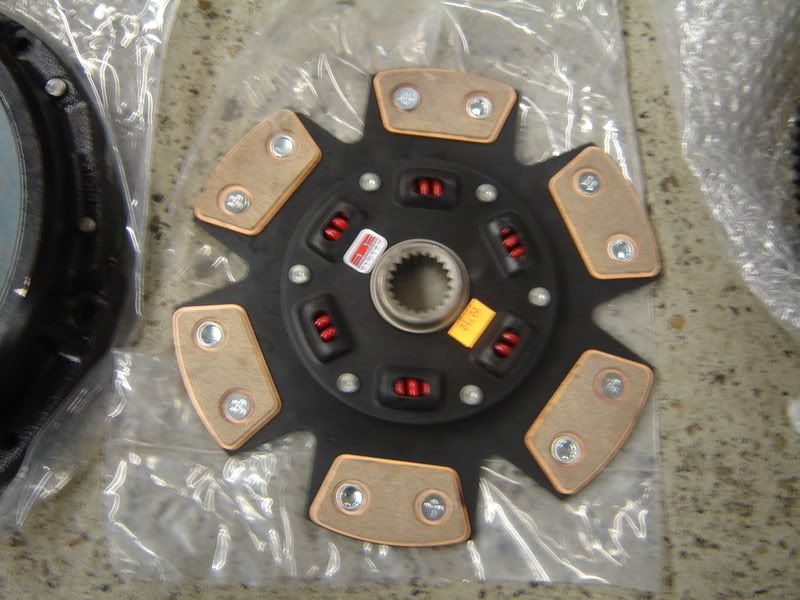

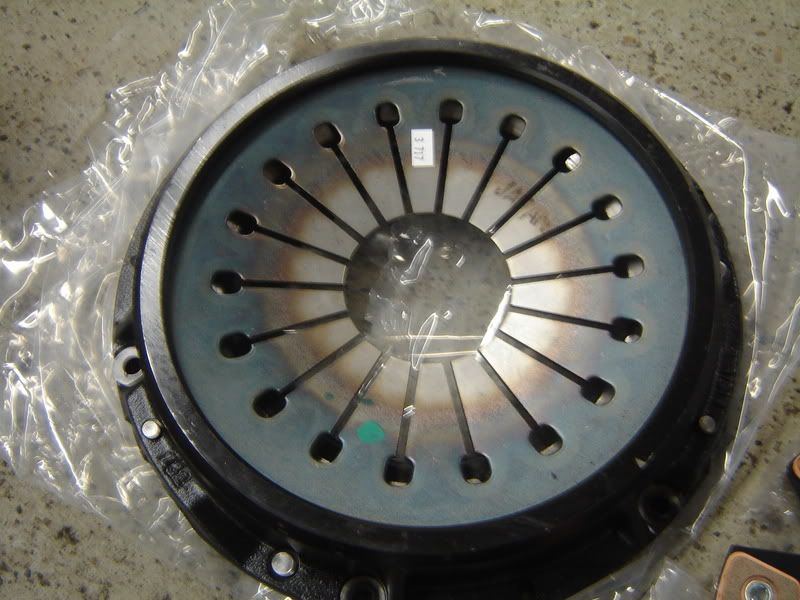

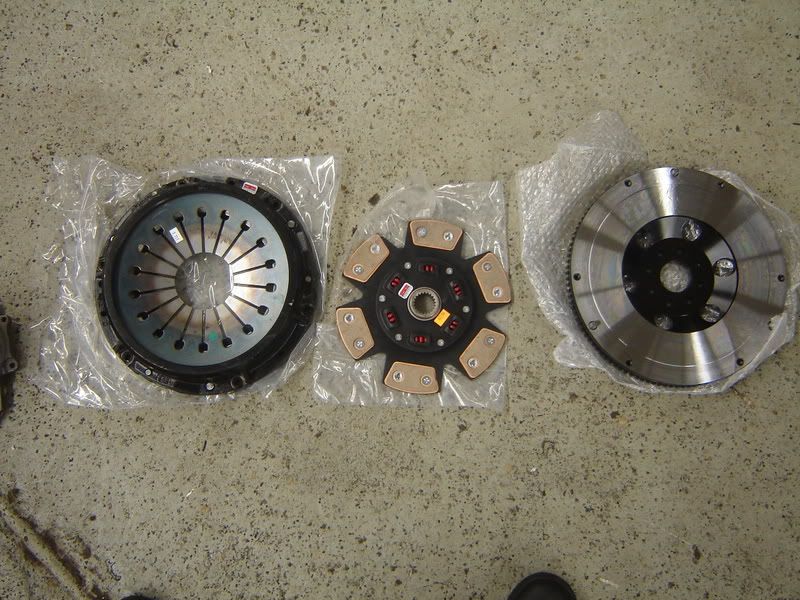

also got 2 other goodies today...Comp Clutch Stage 4 6 Puck tagged along by there light weight flywheel..









still waiting on my exhaust and blow off valve...

[BLKtopSIL80]

bump for me taking forever to finish this thing

[AnthonyJDM]

Hey tony, we got the complete KA24DE power steering setup in stock. Let me know if you still them?!

[BLKtopSIL80]

how much

[SlideWayzS13]

Damn def a sick swap that looks stock!.....kinda haha...GL with everything...Gonna bring it to Hanna to tune it???
