pivot controller for pop up lights? - TriStateTuners.com :: Home of Tristate Auto Enthusiast

92rps13 · 07-17-2006, 06:12 PM

seein if anyone had succesfully installed a pivot controller for a 240sx ,the directions are for a 180sx so everythings backwards.

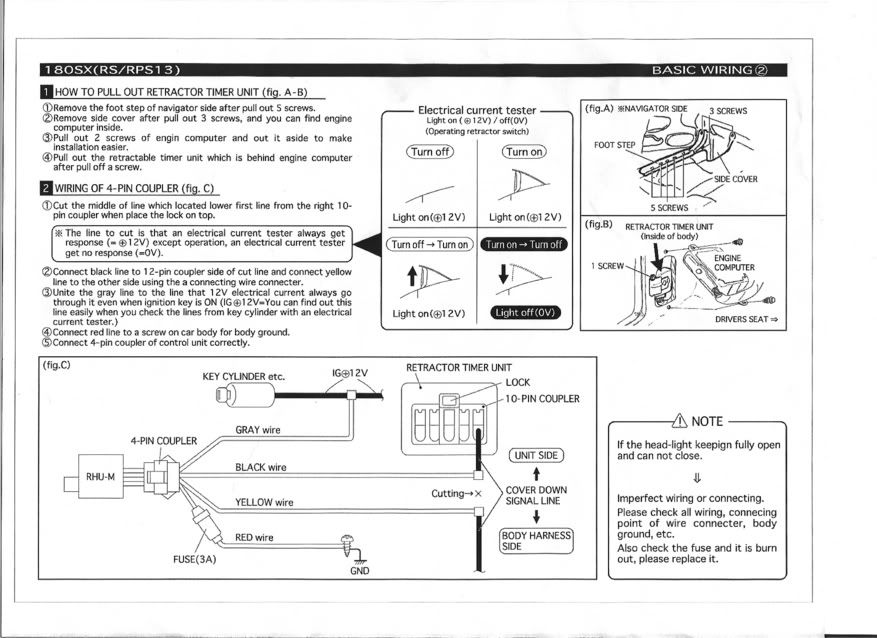

heres the directions -

i cant find the retractor timer unit,and i dont no where to plug the yellow wire at,it just shows the yellow wire being pointed to the body harness side?????
hopefully someone knows, any help would be great thanks

Mac @ R/T Tuning · 07-18-2006, 10:27 PM

Find a little black box located inside the driver's side kick panel.
Cut the pink wire.
Connect the black wire to the pink wire toward the box.
Connect the yellow wire to the pink wire toward where the wire coming from.
Let stand in microwave for 2 minutes or until cool.
Done & done.

92rps13 · 07-19-2006, 01:27 PM

Quote:

Originally Posted by Mac @ R/T Tuning

Find a little black box located inside the driver's side kick panel.
Cut the pink wire.
Connect the black wire to the pink wire toward the box.
Connect the yellow wire to the pink wire toward where the wire coming from.
Let stand in microwave for 2 minutes or until cool.
Done & done.

yeah, me and a friend of mine figured it out yesterday,had everything hooked up,but one of the fuse's is burn't out.

07-17-2006, 06:12 PM	#1
92rps13 Tri-State Aficionado Banned Join Date: Jul 2006 Location: P.A. Member #2212 My Ride: vaffaculo iTrader: (0)	pivot controller for pop up lights? seein if anyone had succesfully installed a pivot controller for a 240sx ,the directions are for a 180sx so everythings backwards. heres the directions - i cant find the retractor timer unit,and i dont no where to plug the yellow wire at,it just shows the yellow wire being pointed to the body harness side????? hopefully someone knows, any help would be great thanks

07-18-2006, 10:27 PM	#2
Mac @ R/T Tuning Tri-State Aficionado Join Date: Apr 2006 Location: Lansdale, PA Member #1823 My Ride: 2000 Honda S2000 iTrader: (0)	Find a little black box located inside the driver's side kick panel. Cut the pink wire. Connect the black wire to the pink wire toward the box. Connect the yellow wire to the pink wire toward where the wire coming from. Let stand in microwave for 2 minutes or until cool. Done & done. __________________ Mac To view links or images in signatures your post count must be 10 or greater. You currently have 0 signatures. AIM: RTTuningMac To view links or images in signatures your post count must be 10 or greater. You currently have 0 signatures. To view links or images in signatures your post count must be 10 or greater. You currently have 0 signatures. Home of the Hot Wheels: Advan, Work, Gram Light, Volk, AME, GP Sports & more... Last edited by Mac @ R/T Tuning; 07-18-2006 at 10:30 PM.
