Tan's Golf Retrofit Is Complete! - TriStateTuners.com :: Home of Tristate Auto Enthusiast

LightWerkz · 07-10-2007, 03:33 PM

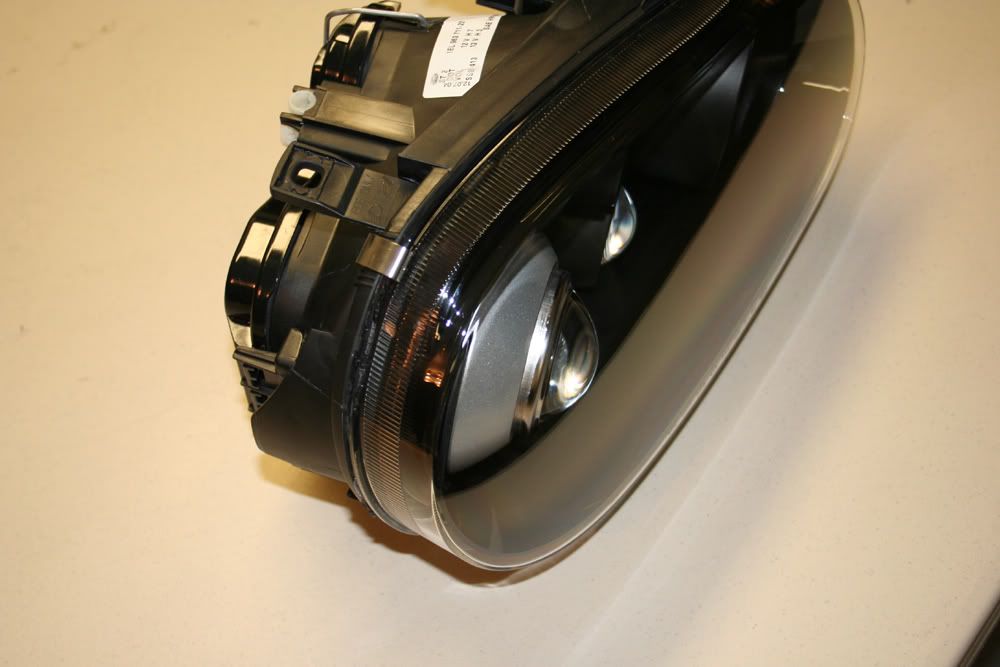

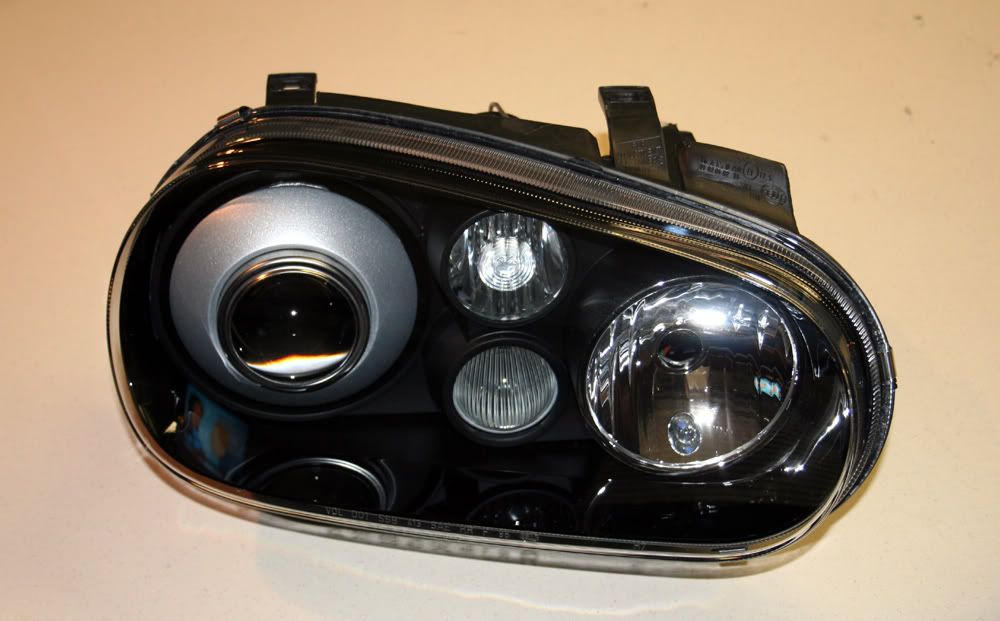

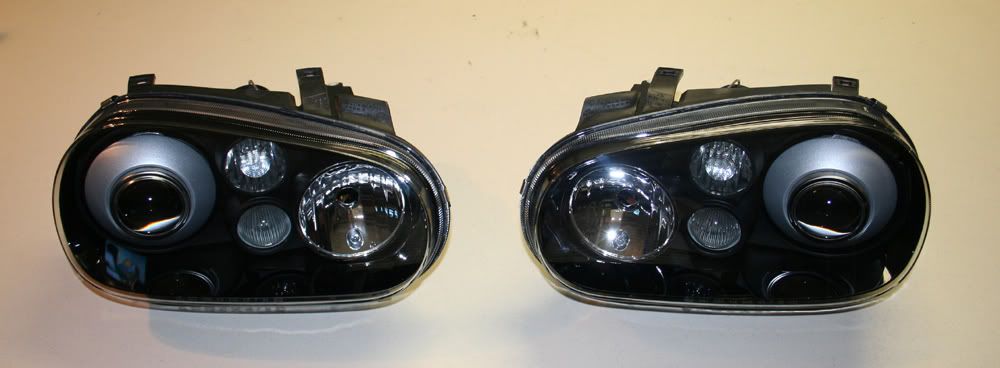

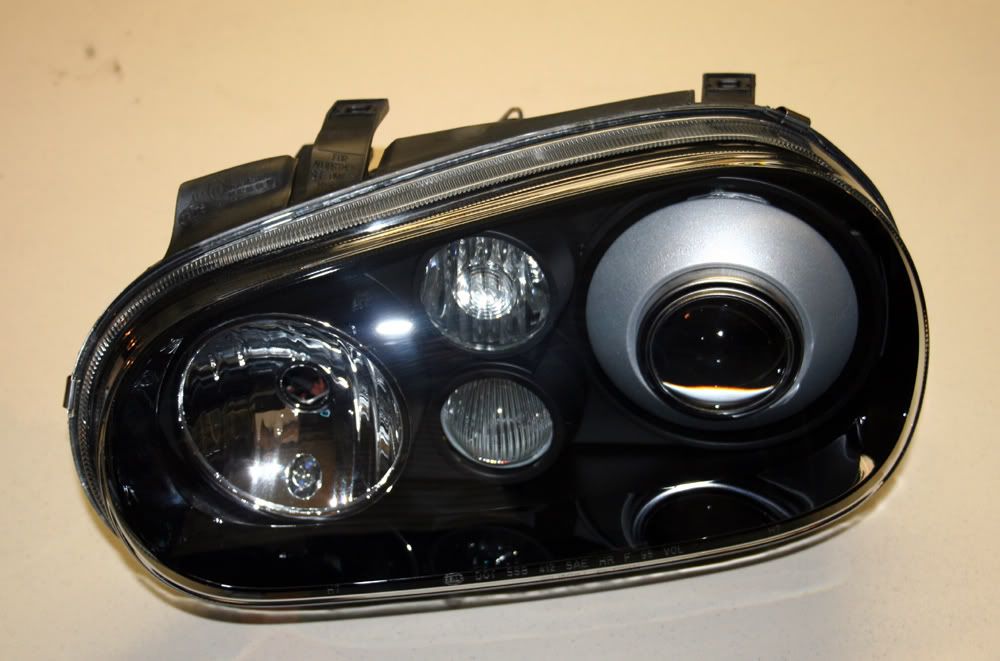

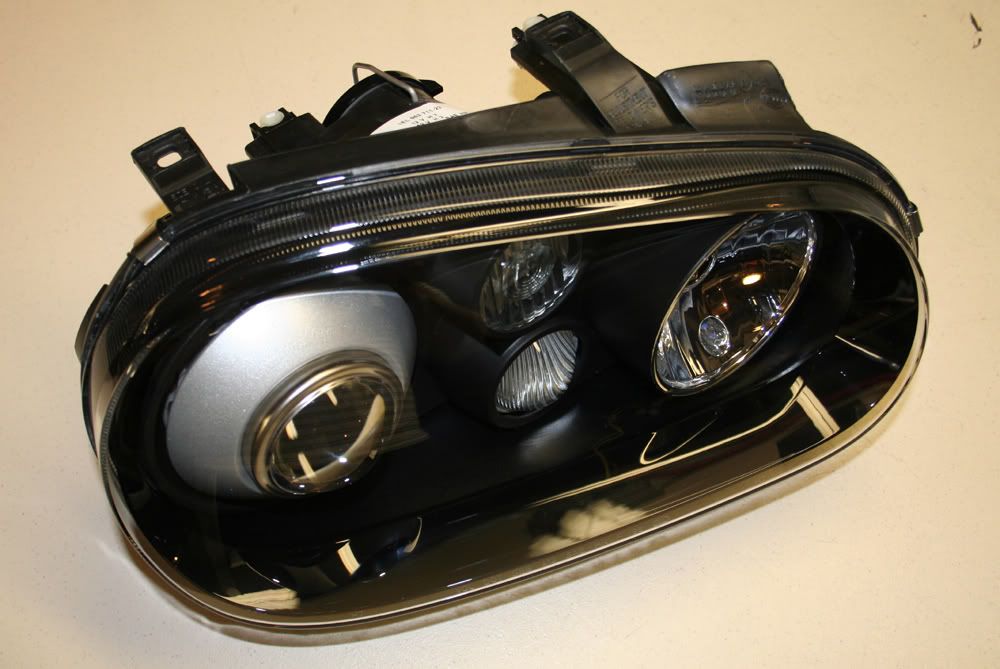

This project consisted of brand new GTI lights made by Hella, Honda S2000 Projectors, and BMW E90 Bezels.

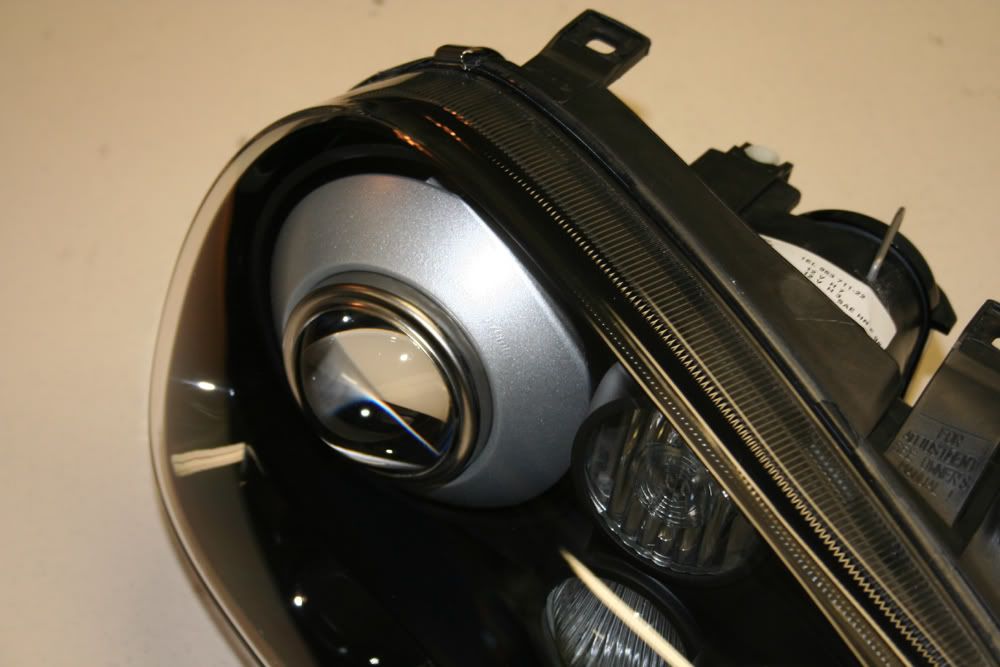

The reflector was painted black (except the high beam area) and the e90 shroud was painted hyper silver to give it that factory look.

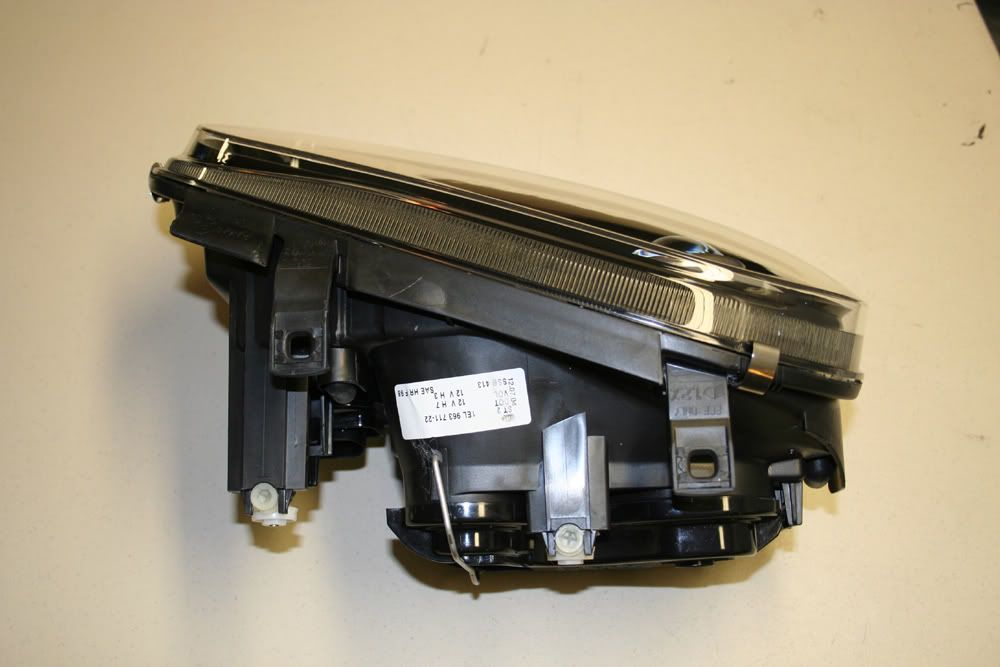

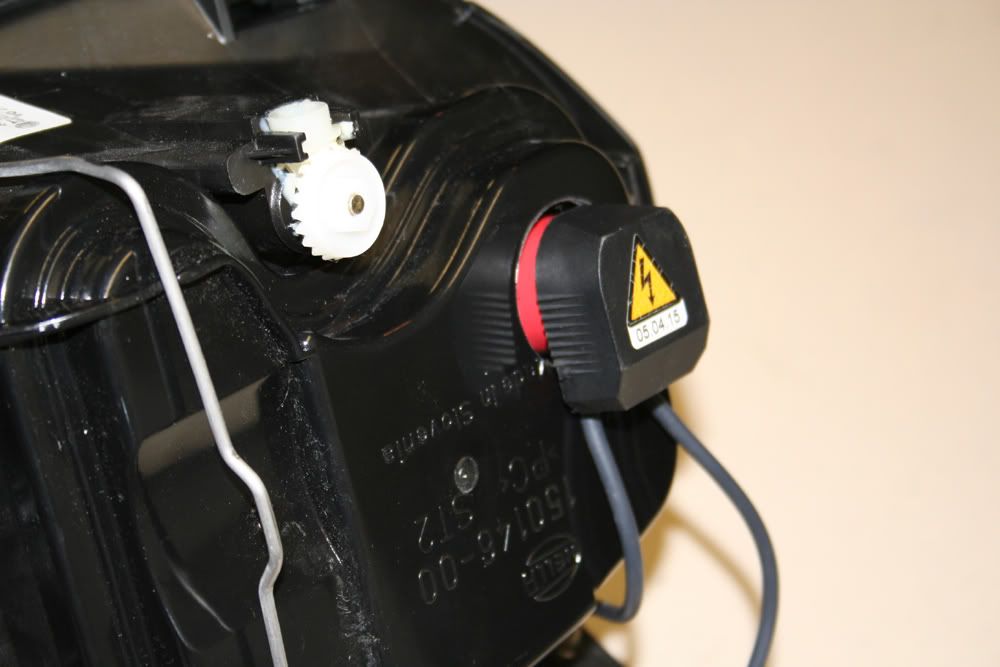

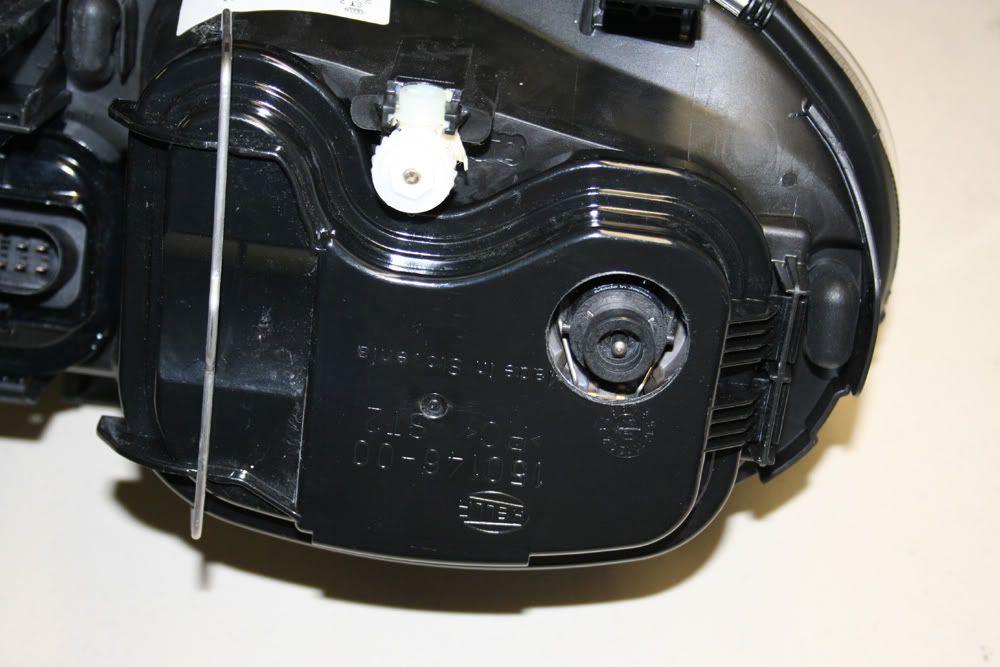

A hole was made in the rear for the ignitor to reach the bulb....talk about the ultimate OEM Setup!

Tan actually tried to do this himself. This project wasn't easy for us either...
The spacing of the projector is cruicial so nothing rubs in the inside of the lamp, and finding the right shroud was just luck actually, we had one set here! It came together really nicely in the end...

SmokeyBandit · 07-10-2007, 03:49 PM

Damn that is sweet. I'll have to pick it up when I get back from Minnesota later this week.

LightWerkz · 07-10-2007, 03:55 PM

glad you like how it came out. Just wait until you have them installed into the car and you see the output!

SmokeyBandit · 08-22-2007, 01:26 PM

naDintheHat · 08-22-2007, 01:42 PM

Looking good.

07-10-2007, 03:33 PM	#1
LightWerkz Tri-State Training Wheels Join Date: Dec 2006 Location: Clifton NJ Member #3210 My Ride: Subaru STi iTrader: (0)	Tan's Golf Retrofit Is Complete! This project consisted of brand new GTI lights made by Hella, Honda S2000 Projectors, and BMW E90 Bezels. The reflector was painted black (except the high beam area) and the e90 shroud was painted hyper silver to give it that factory look. A hole was made in the rear for the ignitor to reach the bulb....talk about the ultimate OEM Setup! Tan actually tried to do this himself. This project wasn't easy for us either... The spacing of the projector is cruicial so nothing rubs in the inside of the lamp, and finding the right shroud was just luck actually, we had one set here! It came together really nicely in the end...

07-10-2007, 03:49 PM	#2
SmokeyBandit Tri-State Addict Join Date: Feb 2005 Location: Lake Hiawatha, NJ Member #194 iTrader: (0)	Damn that is sweet. I'll have to pick it up when I get back from Minnesota later this week. __________________ my FAST is grown up and drives a family station wagon

08-22-2007, 01:26 PM	#4
SmokeyBandit Tri-State Addict Join Date: Feb 2005 Location: Lake Hiawatha, NJ Member #194 iTrader: (0)	__________________ my FAST is grown up and drives a family station wagon

08-22-2007, 01:42 PM	#5
naDintheHat Tri-State Addict Join Date: Aug 2006 Location: Allentown, Pa Member #2360 My Ride: 94 GTI - Br0ke, 98 GTI - Stock.. iTrader: (0)	Looking good. __________________ I drive a constantly broken, model confused vehicle. To view links or images in signatures your post count must be 10 or greater. You currently have 0 signatures.
