take that 16g.... - TriStateTuners.com :: Home of Tristate Auto Enthusiast

jimtweet · 07-19-2007, 08:32 PM

well decided it was time to go big or go home and update the car a bit...so i sold off all the old stuff and here is what i got...

turboxs fmic (custom piping)
innovative pro gate wastegate
innovating turbo 50 trim T04E with a T3 stage 5 turbine dual ball bearing water cooled and oil
custom up pipe adaptor
custom downpipe
custome intake not yet made
and blow through maf....so far here we go with the pics...

sherwood · 07-19-2007, 08:34 PM

thats sick dude.

JET02WRX · 07-19-2007, 08:53 PM

Glad to see my money went to a good cause

Can't wait to see results for the finished product! Looking forward to getting your 16g and putting it through some abuse...

guesswho · 07-20-2007, 12:32 AM

Always thought your car was awesome, remember seeing it at A&T subaru meet, I have to convince my dad to do his headlights like yours, looks great!

james_ls · 07-20-2007, 12:58 AM

Sizzick as usual.

Can't wait to see this revision either!!

Rey The Great · 07-20-2007, 01:01 AM

oo snap..i likes very much..how much power u think it will make?

ScoobyNubieToo! · 07-20-2007, 06:50 AM

Damn that thing is clean! Jim, it's ok to drive it....it's ok to get it a little dirty.....it's a car for Christ's sake! LOL!

Krazed02 · 07-20-2007, 10:31 AM

go big or go home, nice upgrade

jimtweet · 07-27-2007, 03:16 PM

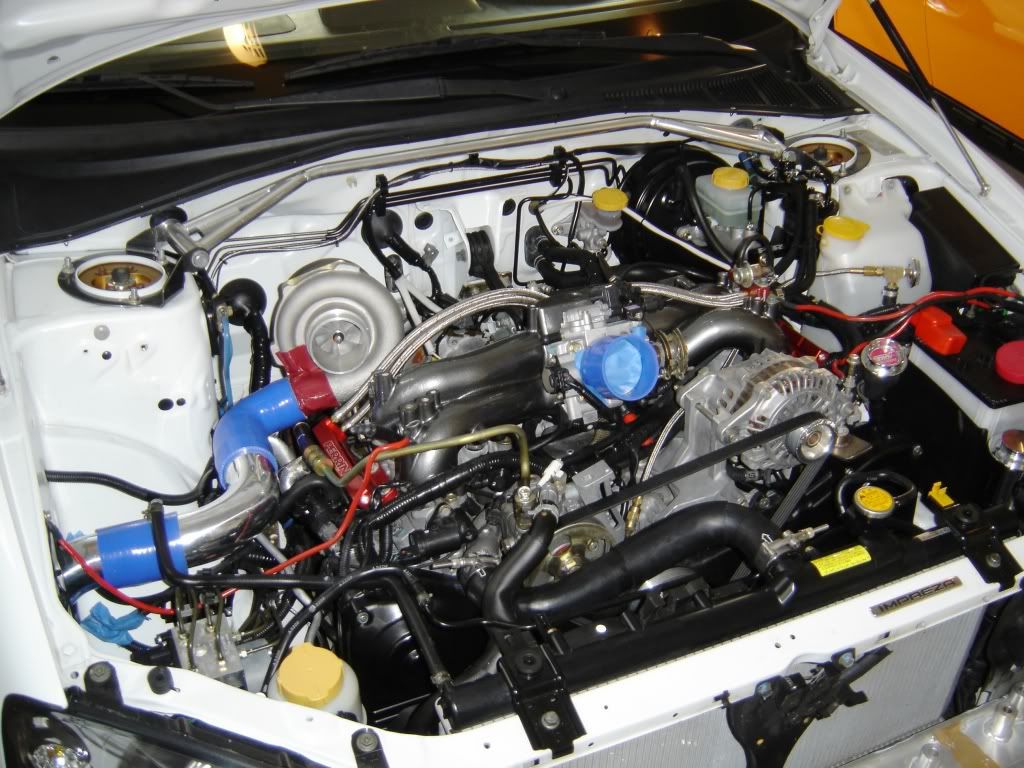

extra piping not used from TurboXs FMIC kit...mmmmmmmmmm i love quick spoooooool

(note i did not have to weld any piping, the only thing that will have to be welded is the BOV flange)

massive Innovative Progate and catch can (pcv and crankcase both vented to atmos.)

new pipe route...

waiting on turbo gasket, Fing Oil line and Oil drain and that is it, then final install and off for a TUNE

the mike · 07-27-2007, 07:18 PM

Your intake manifold is nice.

And I beeped at you today.

Spocknasty · 07-27-2007, 07:20 PM

That is a crazy clean Subaru bay!

Buster · 07-27-2007, 07:21 PM

what are the benefits of the perrin fuel rails, i think they look awesome but what do they actually do?

lagos · 07-27-2007, 08:23 PM

your a smart man for keeping that IC protected during install. they tend to get dinged up pretty quick.

jimtweet · 07-28-2007, 08:22 AM

Quote:

Originally Posted by the mike

Your intake manifold is nice.

And I beeped at you today.

haha i heard someone honk and i turned around, but i had no clue who it was, what car where you in?

the mike · 07-28-2007, 08:38 PM

I was leaving for a test drive. I was on the side street next to work in a Highlander.

SoStock92 · 07-29-2007, 02:14 AM

what air filter is that red thing

jimtweet · 07-29-2007, 09:08 AM

perrin

jimtweet · 07-29-2007, 09:09 AM

Quote:

Originally Posted by Buster

what are the benefits of the perrin fuel rails, i think they look awesome but what do they actually do?

when i reversed my manifold, i had to get fuel rails, its just something you need so that you do not have fuel lines running to close to the turbo...and they looks pretty sick! haha

Vypurr · 07-29-2007, 09:54 AM

Is that just a mock up, or are you actually installing it now? The reason i ask is because there are no T-Bolts on any of your IC pipes? Looks sick though!

jimtweet · 07-29-2007, 11:34 AM

Quote:

Originally Posted by Vypurr

Is that just a mock up, or are you actually installing it now? The reason i ask is because there are no T-Bolts on any of your IC pipes? Looks sick though!

all just mock up, still waiting on oil line, turbo gasket, oil drain flange, and have to make intake...
